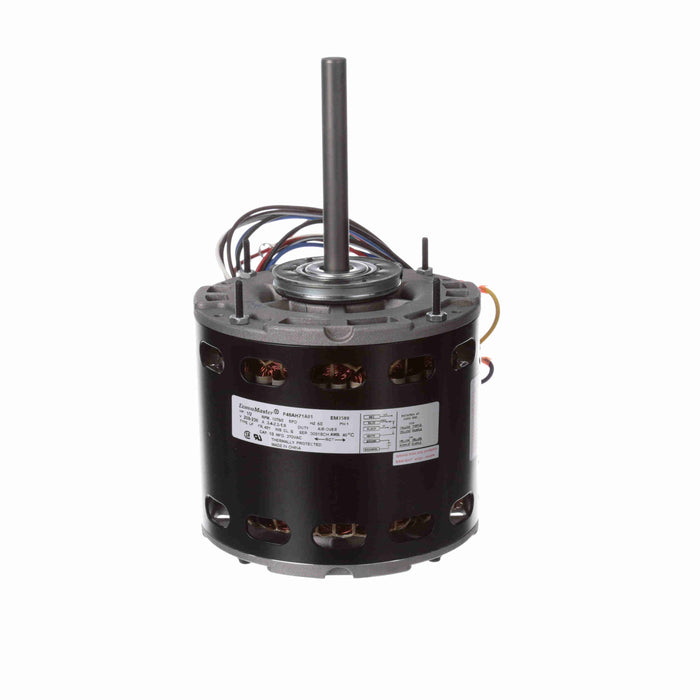

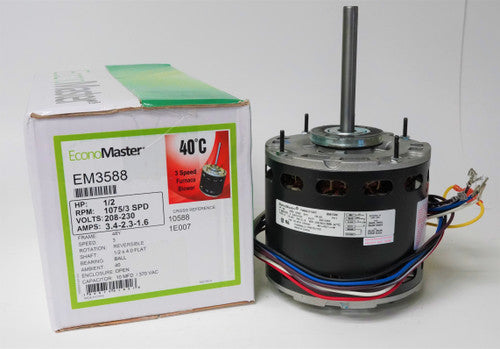

CENTURY EM3588 PRO-E SERIES Fan and Blower Motor 1/2 HP

Product Description

The Century EM3588 PRO-E Series Fan and Blower Motor is a 1/2 HP motor built for HVAC systems. This motor runs on 208-230 volts and operates at 60 Hertz. It offers three adjustable speeds with a maximum speed of 1075 RPM. The design features an open enclosure and automatic thermal protection. This motor is ideal for air over applications.

• Direct drive fan and blower motor
• 5.6 inches diameter, 48 frame size
• Thermal protection included

Product Highlights

This motor is crafted for high-efficiency performance in fan and blower tasks, ensuring reliable operation.

Product Information

Standard Information

• Brand: Century
• MPN: EM3588

Technical Specifications

• Phase: 1
• Output HP: 1/2 HP
• Output KW: 0.37 kW
• Voltage: 208-230 V
• Speed: 1075 RPM
• Service Factor: 1
• Frame: 48Y
• Enclosure: Open Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 3.4-2.3-1.6 A
• Duty Cycle: Air Over
• Insulation Class: B
• UL Certification: Recognized
• CSA Certification: Y
• CE Certification: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 9.86 inches
• Frame Length: 4.99 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 4.0 inches
• Packaged Length: 13.78 inches
• Packaged Width: 6.41 inches
• Packaged Height: 6.81 inches
• Motor Diameter: 5.6 inches
• Motor Shell Length: 4-1/4 inches
