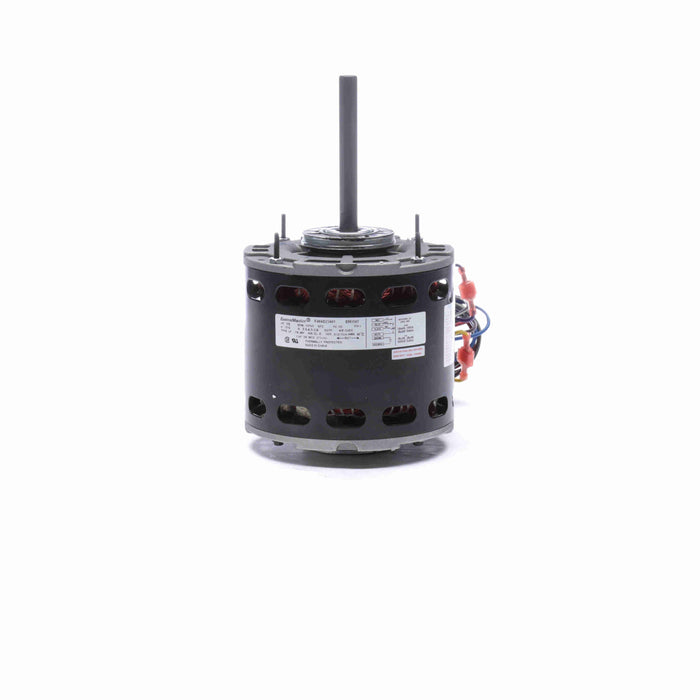

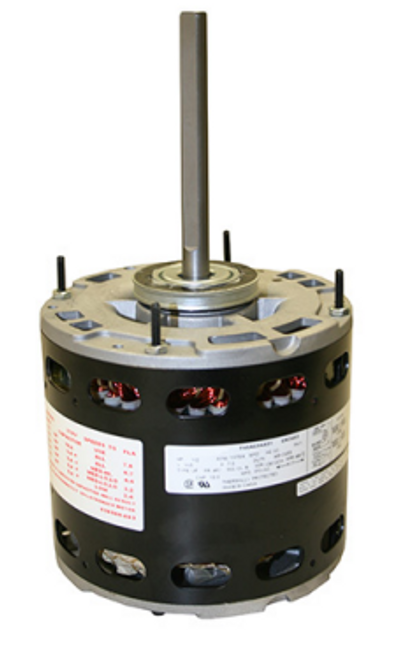

CENTURY EM3587 Fan and Blower Motor 1/2 HP 115 V

Product Description

The CENTURY EM3587 is a reliable direct drive fan and blower motor. It operates at a power of 1/2 HP and a voltage of 115 V. With a speed of 1075 RPM, this motor provides efficient airflow for various applications. It is suitable for HVAC systems, furnaces, blowers, and air handlers.

• Direct drive design for effective fan and blower applications
• Thermal protection with class B insulation
• Features a ball bearing and 1/2 inch diameter shaft with flat

Product Highlights

The CENTURY EM3587 motor is designed for reliability and efficiency in demanding environments. Its three-speed functionality allows for flexibility in operation.

Product Information

Standard Information

• Brand: CENTURY
• MPN: EM3587

Technical Specifications

• Phase: 1
• Output HP: 1/2 HP
• Voltage: 115 V
• Speed: 1075 RPM
• Service Factor: 1
• Frame: 48Y
• Enclosure: Open Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 7.5-4.5-3.0 A
• Insulation Class: B
• Number of Speeds: 3
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Shaft Diameter: 0.500 inches
• Overall Length: 9.86 inches
• Frame Material: Rolled Steel
