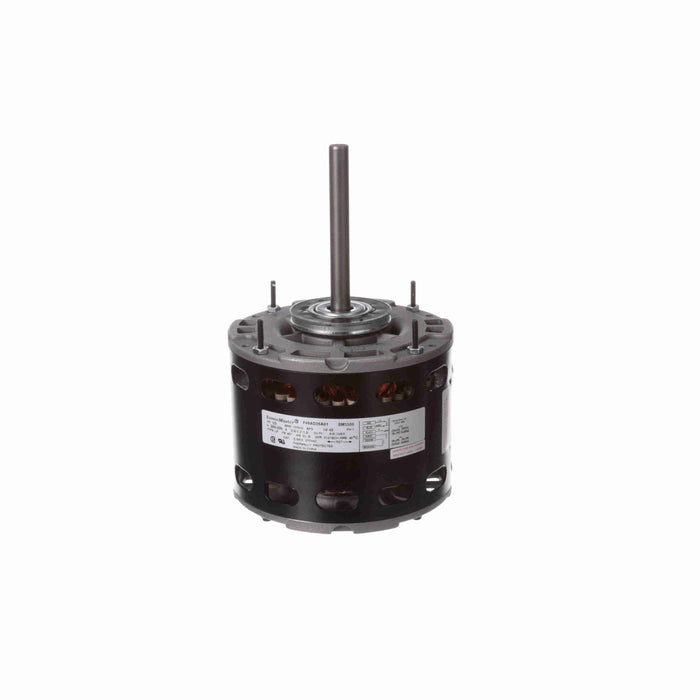

Century EM3586 Pro-E Series Fan and Blower Motor 1/3 HP 1 Ph 60 Hz 208-230 V

Product Description

The Century EM3586 Pro-E Series Fan and Blower Motor is designed for HVAC direct drive fan applications. It has a power output of 1/3 HP and operates on a single phase with a frequency of sixty Hertz. The voltage range is between two hundred and eight to two hundred and thirty volts, and it can reach speeds of one thousand seventy-five RPM. This motor features an open air over enclosure and automatic thermal protection to ensure safe operation.

• 5.6 inch diameter - 48 frame
• Thermally protected for safety
• Offers ball bearing support

Product Highlights

The motor is suitable for various direct drive fan and blower applications. It features reversible rotation and extended studs for easier mounting.

Product Information

Standard Information

• Phase: 1
• Output HP: 1/3 HP

Technical Specifications

• Output KW: 0.25 kW
• Voltage: 208-230 V
• Speed: 1075 RPM
• Service Factor: 1
• Frame: 48Y
• Enclosure: Open Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 2.5-1.6-1.2 A
• Duty Cycle: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 9.36 inches
• Frame Length: 4.49 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 4.0 inches
• Enclosure Type: OAO (Open Air Over)
• Motor Diameter: 5.6 inches
• Motor Shell Length: 3-3/4 inches
• Shaft Length: 4 inches
