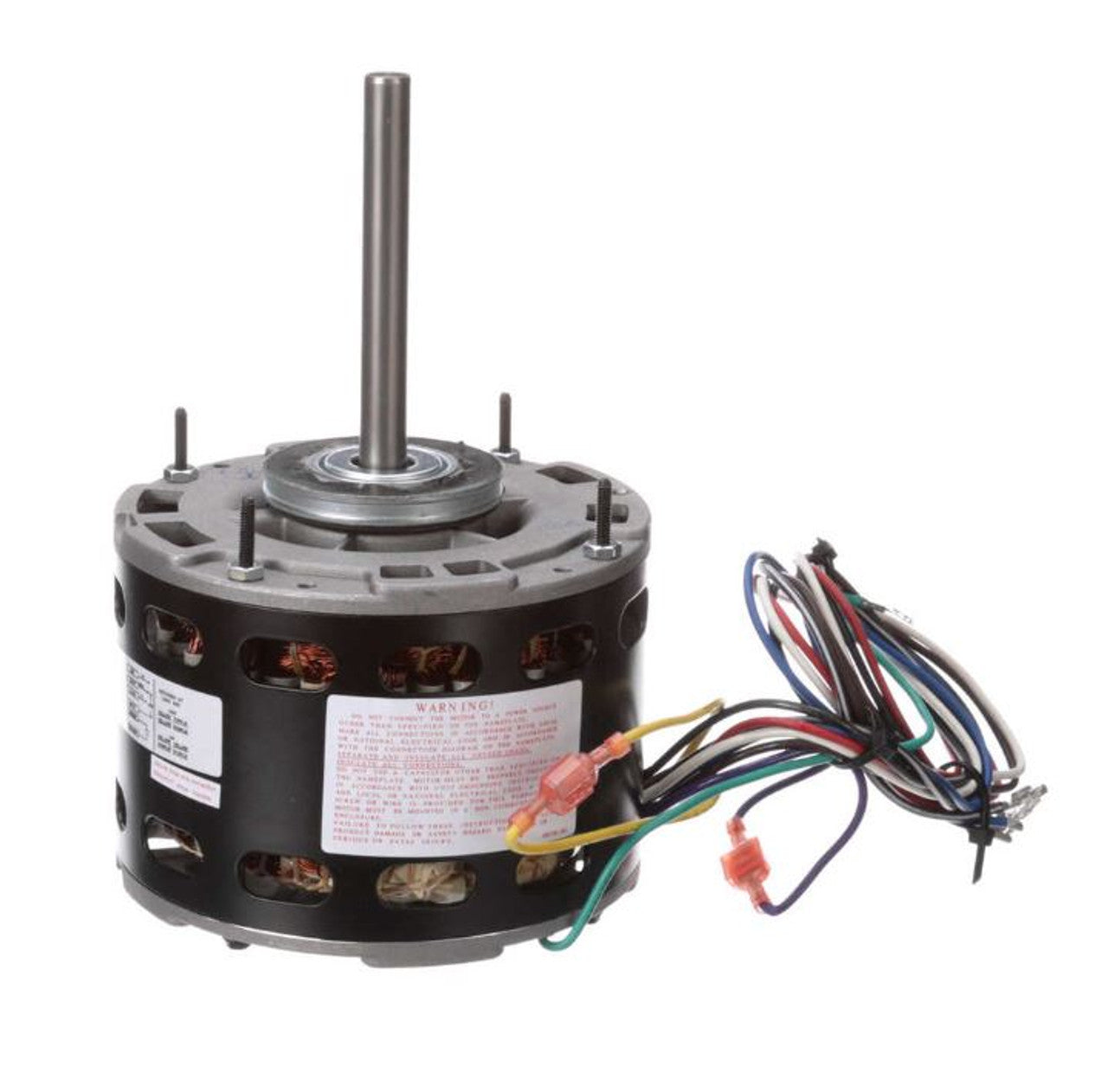

CENTURY EM3584 FAN AND BLOWER MOTOR 1/4 HP

Product Description

The Century EM3584 PRO-E SERIES Fan and Blower Motor is a 1/4 HP motor for fan and blower applications. It runs on 208-230 V and operates at 60 Hz and 1075 RPM with three speeds. Features include open air over enclosure and automatic thermal protection.

• Permanent Split Capacitor (PSC) required (5 Mfd-370 Volts, not supplied)
• Thermally protected for safety
• Ball bearing with a 1/2 inch diameter shaft with flat

Product Highlights

This motor is suitable for HVAC systems, furnace blowers, and exhaust fans. It has extended studs for easy mounting and allows for reversible rotation.

Product Information

Standard Information

• Brand: Century
• MPN: EM3584

Technical Specifications

• Phase: 1
• Output HP: 1/4 HP
• Output KW: 0.19 kW
• Voltage: 208-230 V
• Speed: 1075 RPM
• Service Factor: 1
• Frame: 48Y
• Enclosure: Open air over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 1.9-1.1-0.9 A
• Duty: Air over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across the line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended studs
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled steel
• Shaft Type: Flat
• Overall Length: 8.99 inches
• Frame Length: 3.99 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 4.0 inches
• Application: General HVAC systems, furnace blower motors, exhaust fan motors, whole-house fan motors
