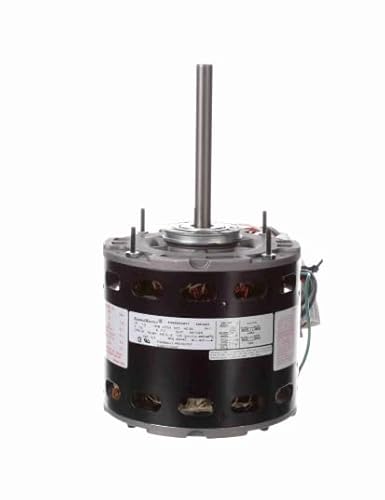

CENTURY EM3583 PRO-E SERIES Fan and Blower Motor 1/4 HP 115 V

Product Description

The Century EM3583 PRO-E SERIES Fan and Blower Motor is a reliable direct drive motor. It has a diameter of five point six inches and fits a forty-eight frame. This motor is designed for safety with thermal protection and class B insulation, operating in ambient temperatures up to forty degrees Celsius.

• Direct drive fan and blower motor
• Thermally protected with class B insulation
• Ball bearing with half inch diameter shaft

Product Highlights

This motor is suitable for various applications including furnace blowers, exhaust fans, and whole house fans. It requires a five Mfd-370 Volts capacitor, which is not included.

Product Information

Standard Information

• Brand: CENTURY
• MPN: EM3583

Technical Specifications

• Phase: 1
• Output HP: 1/4 HP
• Output KW: 0.19 kW
• Voltage: 115 V
• Speed: 1075 rpm
• Service Factor: 1
• Frame: 48Y
• Enclosure: Open Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 4.2-2.4-2.0 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 8.99 inches
• Frame Length: 3.99 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 4.0 inches
