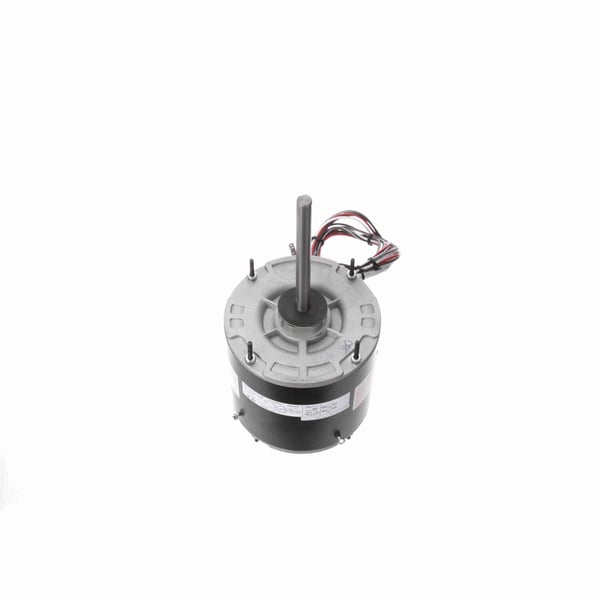

Century EM3469F Condenser Fan Motor 1/3 hp

Product Description

The Century EM3469F condenser fan motor is a Permanent Split Capacitor (PSC) motor with a 48Y frame. This single-phase motor operates at a voltage of 208 to 230 volts and runs at eight hundred twenty-five RPM. It features extended studs which facilitate the mounting process and has a flat shaft type. Built with durable rolled steel and equipped with ball bearings, this motor is suitable for various applications, especially in condenser fan systems.

• Electrical Type: PSC
• Mounting Type: Extended Studs
• Enclosure Type: Totally Enclosed Air Over

Product Highlights

The Century EM3469F is designed for efficiency and durability in condenser fan applications.

Product Information

Standard Information

• Brand: Century
• MPN: EM3469F

Technical Specifications

• Horsepower (HP): 1/3
• Kilowatts (KW): 0.25
• RPM: 825
• Frame: 48Y
• Diameter: 5.6 inches
• Voltage: 208 to 230 V
• Rotation: Reversible
• Overload Protection: Automatic
• Amperage: 1.9, 1.2 A
• Shaft Type: Flat
• Shaft Extension: 6.000 inches
• Shaft Diameter: 0.500 inches
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Service Factor: 1
• Insulation Class: F
• Poles: 8
