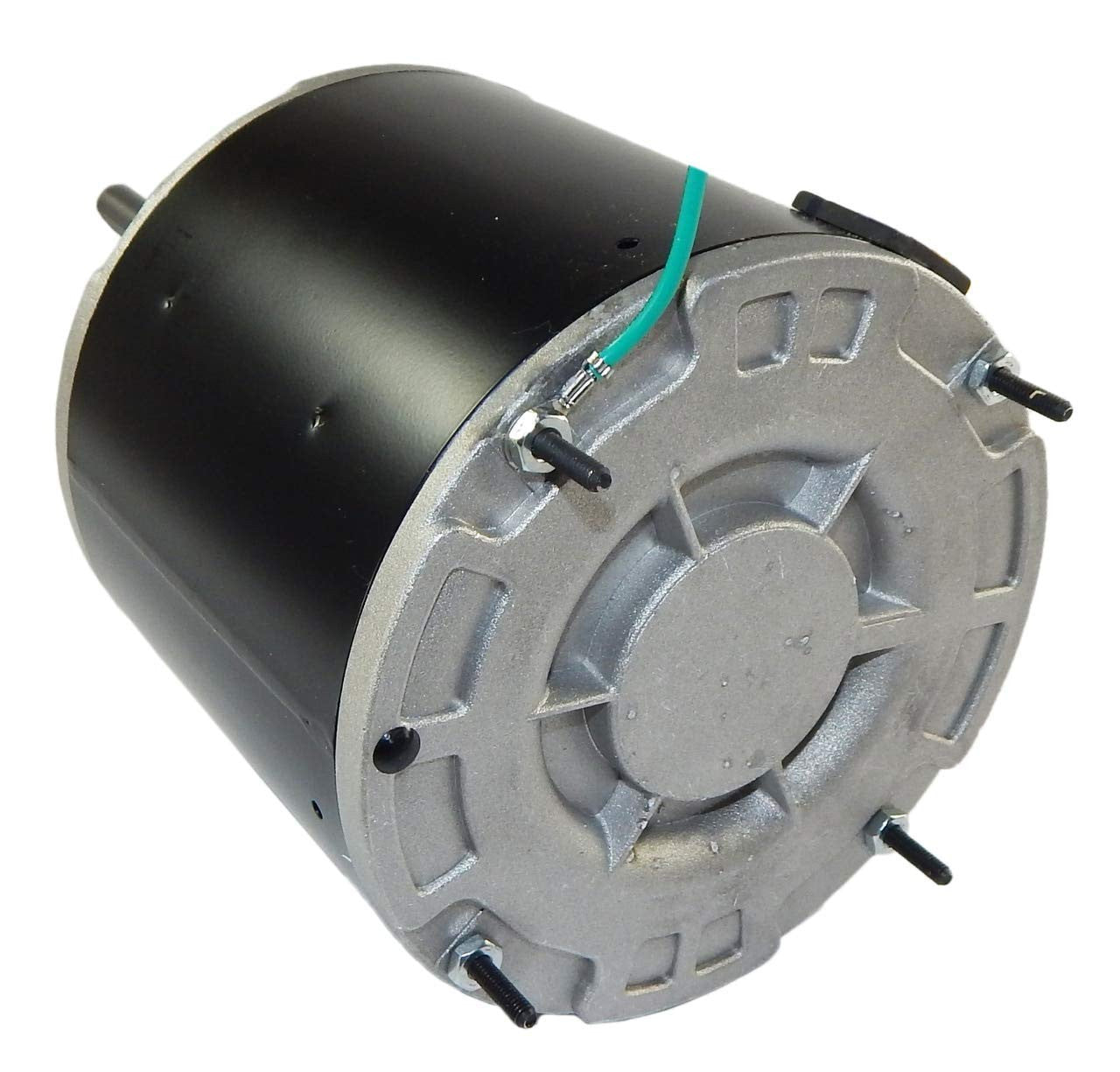

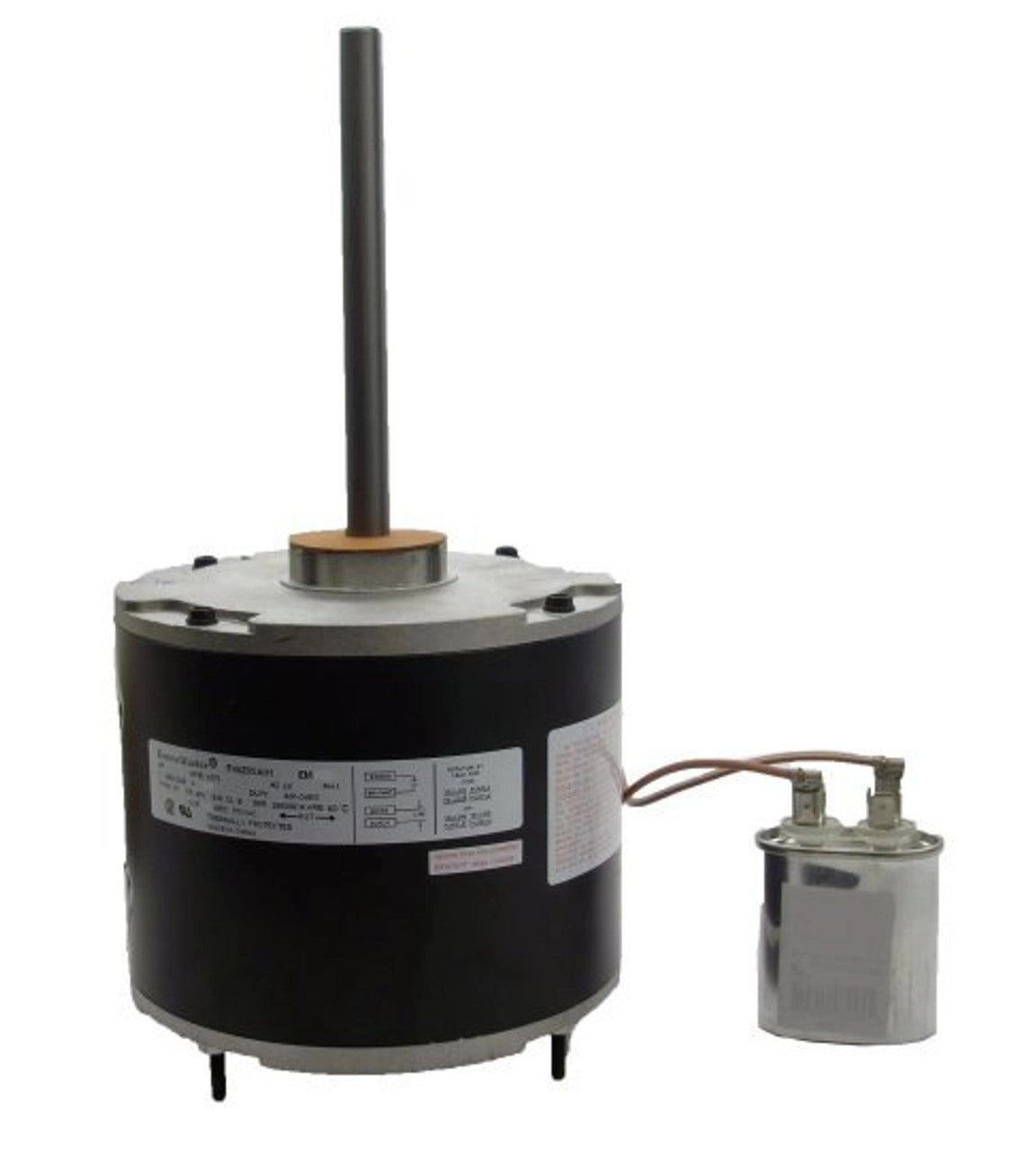

CENTURY EM3468F Em3468f Condenser Fan Motor 1/2 HP

Product Description

The CENTURY EM3468F Em3468f Condenser Fan Motor is a reliable solution for HVAC systems. With a power rating of 1/2 HP and a speed of 1075 RPM, it efficiently operates as a condenser fan motor. It is designed with a TEAO enclosure for protection and features rolled steel construction for durability.

• Electrical type: PSC
• Reversible rotation for flexible installation
• Automatic overload protection enhances safety

Product Highlights

This motor is suitable for various HVAC applications and enhances overall performance.

Product Information

Standard Information

• Brand: CENTURY
• MPN: EM3468F

Technical Specifications

• Electrical Type: PSC
• HP: 1/2
• KW: 0.37
• RPM: 1075
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 208-230 V
• Rotation: Reversible
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Extended Studs
• Amperage: 3.6, 1.7 A
• Shaft Type: Flat
• Output KW: 0.37 kW
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Duty: Air Over
• Service Factor: 1
• Poles: 6
