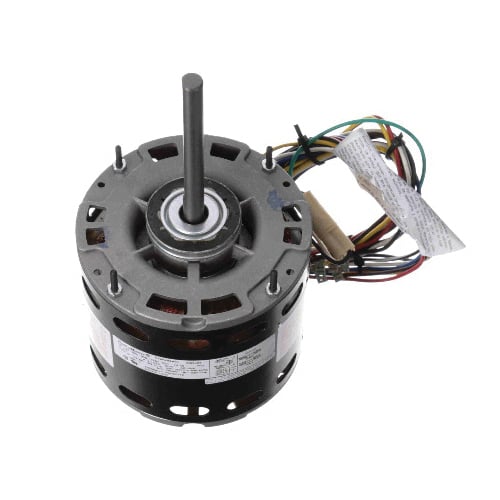

CENTURY EM3466 Pro-E Series Fan and Blower Motor 3/4-1/5 HP 115 V

Product Description

The CENTURY EM3466 is a Pro-E Series direct drive fan and blower motor. This motor operates at a power range of three-fourths to one-fifth horsepower and requires a voltage of one hundred fifteen volts. It runs at one thousand seventy-five revolutions per minute with a total of four operating speeds.

• 5.6 inches diameter and 48 frame size
• Thermally protected for increased reliability
• 1/2 inch diameter shaft with flat design

Product Highlights

Product Information

Standard Information

• Phase: 1
• Output HP: 3/4 - 1/5 HP

Technical Specifications

• Voltage: 115 V
• Speed: 1075 RPM
• Service Factor: 1.0
• Frame: 48Y
• Enclosure: Open Enclosure
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 9.1 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 4
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.36 inches
• Frame Length: 4.93 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 4.5 inches
• Horsepower: 0.75 Horsepower
• Motor Type: PSC
• Voltage Rating: 115 V
• Capacitor Value: 10; 7.5; 5 MFD 370 VAC
• Application Type: Fan and Blower Motor
• Enclosure Type: Open Enclosure Air over
• Temperature Rating: 40 °C
