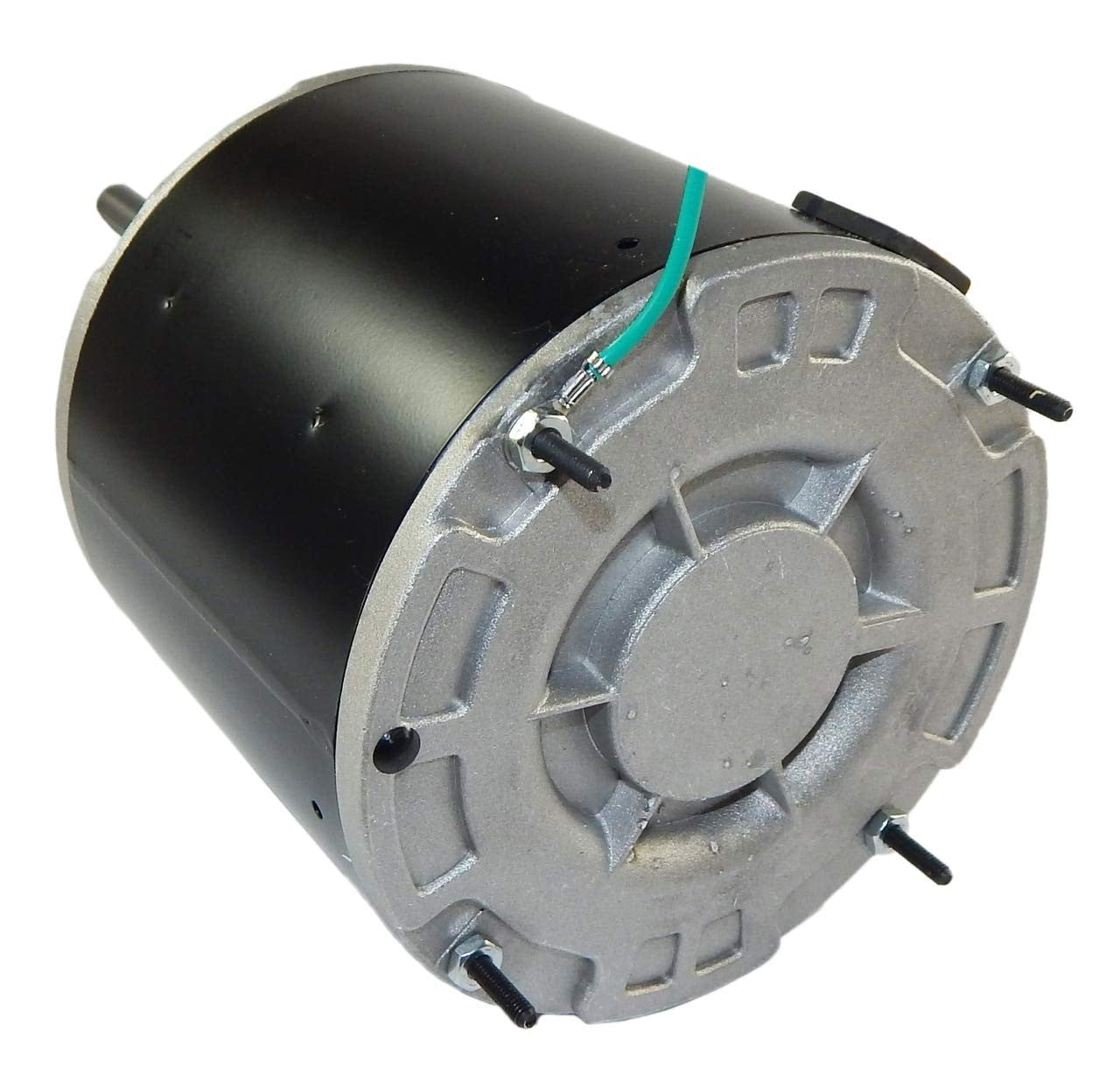

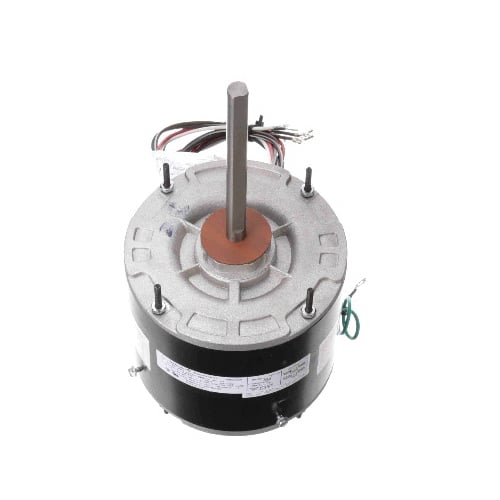

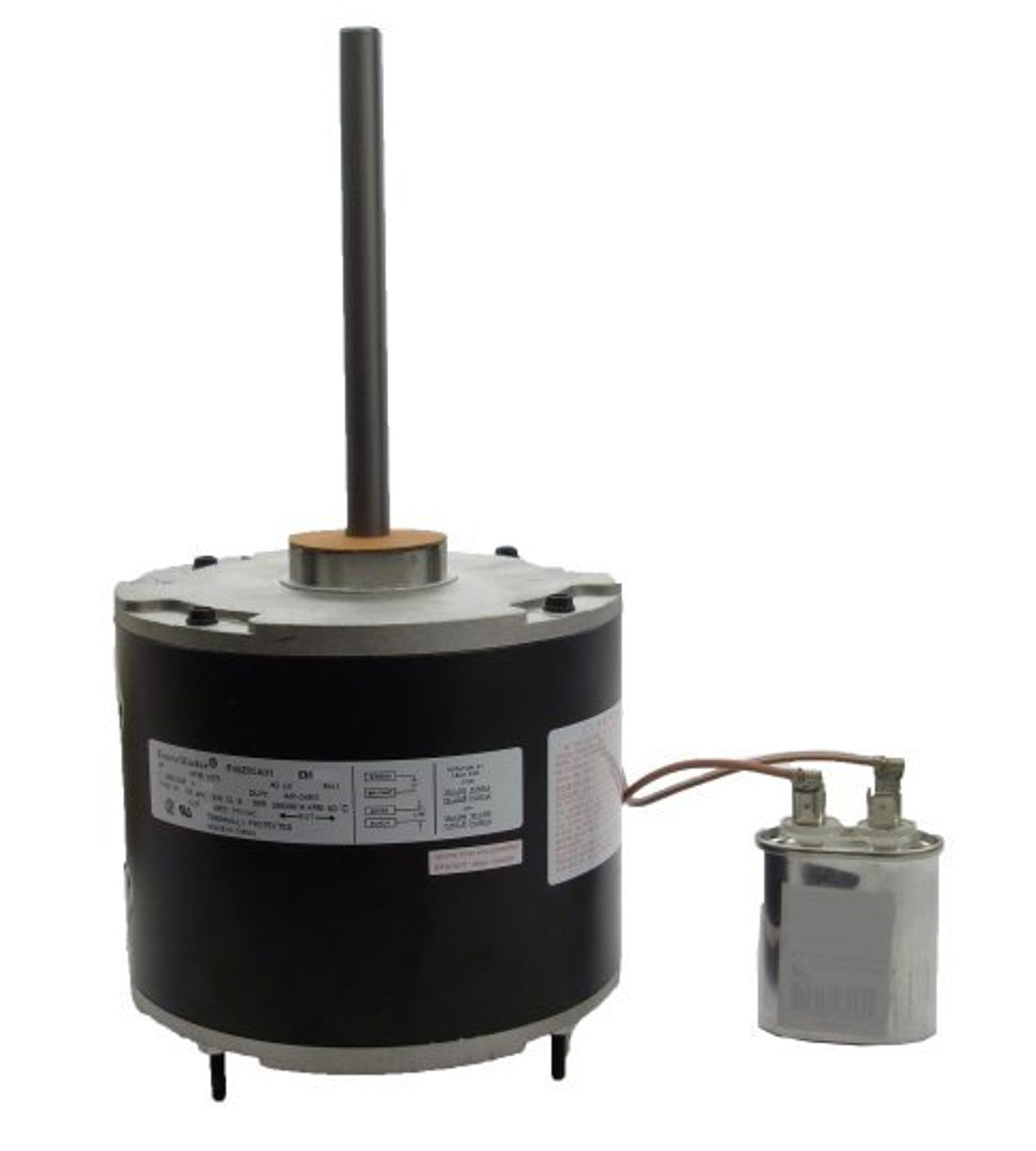

CENTURY EM3465F Condenser Fan Motor 1/3 HP

Product Description

The CENTURY EM3465F is a 1/3 HP condenser fan motor designed for HVAC applications. It features a PSC electrical type and operates effectively on 208-230V single-phase power. The motor has a diameter of five point six inches and is housed in a TEAO enclosure, suitable for various installation environments.

• Electrical Type: PSC
• Reversible rotation capability
• Automatic overload protection included

Product Highlights

This motor is engineered for reliability and smooth operation in cooling systems.

Product Information

Standard Information

• Brand: CENTURY
• MPN: EM3465F

Technical Specifications

• Electrical Type: PSC
• HP: 1/3
• KW: 0.25
• RPM: 1075
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 208-230 V
• Rotation: Reversible
• Overload: Auto
• Bearings Type: Ball / Ball
• Mounting: Extended Studs
• Amperage: 2.6, 1.4 A
• Shaft Type: Flat
• Shaft Extension: 6.000 inches
• Shaft Diameter: 0.500 inches
• Service Factor: 1.0
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Duty: Air Over
• Insulation Class: F
• UL: Recognized
• CSA: Y
• CE: N
• Poles: 6
• Overall Length: 11.42 inches
• Frame Length: 4.93 inches
• Application Type: Condenser Fan Motor
• Enclosure Type: Totally Enclosed Air Over
• Shaft Size: 1/2 in Dia x 6 in L
• Temperature Rating: 70 deg C
• Type: 6-Pole
