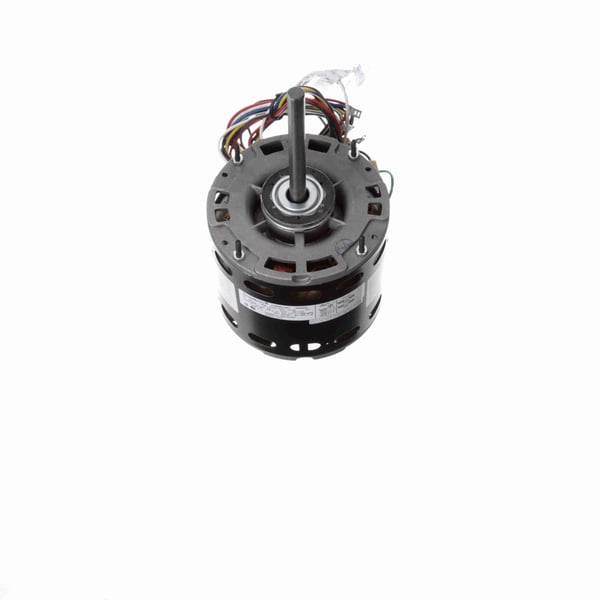

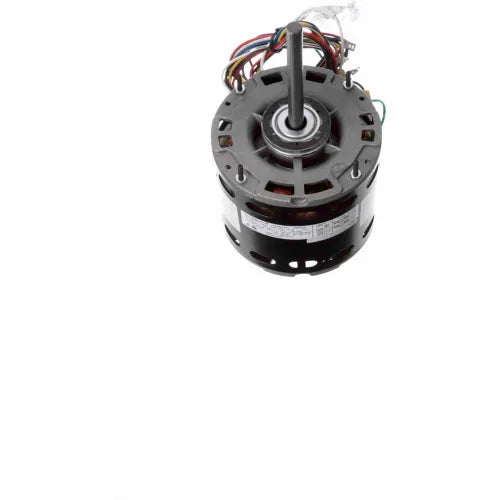

CENTURY EM3464 PRO-E SERIES Fan and Blower Motor 1/2-1/6 HP

Product Description

The CENTURY EM3464 PRO-E Series fan and blower motor is suitable for direct drive applications and features a five point six inch diameter and a forty-eight frame. It requires a ten microfarad, three hundred seventy volts capacitor, which is not included. This motor is thermally protected with class B insulation and operates effectively at forty degrees Celsius ambient temperature. The design includes ball bearings and a one half inch diameter flat shaft for smooth performance.

• Permanent split capacitor (PSC) design
• Thermally protected for safety
• Extended studs for versatile mounting options

Product Highlights

This CENTURY blower motor is suitable for HVAC applications, offers multiple speeds, and features reversible rotation for optimized use.

Product Information

Standard Information

• Application Type: Fan and Blower Motor
• Shaft Type: Flat

Technical Specifications

• Phase: 1
• Output HP: 1/2-1/6 Hp
• Voltage: 208-230 V
• Speed: 1075 rpm
• Service Factor: 1.0
• Frame: 48Y
• Thermal Protection: Automatic
• Frequency: 60 Hz
