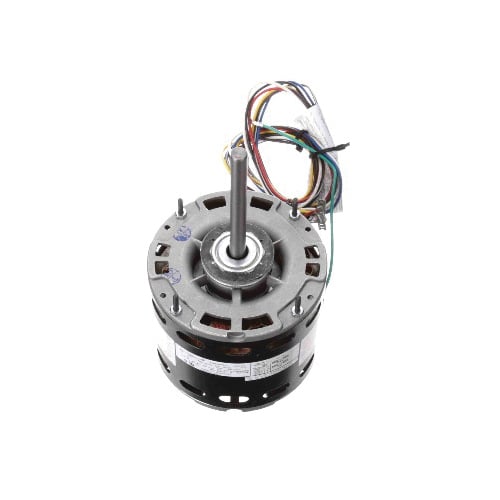

Century EM3463 PRO-E Series Fan and Blower Motor 1/2-1/6 HP 115 V 4 Speed

Product Description

The Century EM3463 PRO-E SERIES fan and blower motor is an essential component for HVAC systems and ventilation setups. Designed to operate at 115 V, this four-speed motor runs at 1075 RPM and has an open enclosure. It is suitable for furnace blowers, exhaust fans, and whole house fans.

• Permanent Split Capacitor (PSC) motor design
• Automatic thermal protection with overload safeguarding
• Ball bearing design with extended studs for easy mounting

Product Highlights

This motor is designed for direct drive fan and blower applications. It meets the demands of various HVAC installations with its multi-speed capability, making it a versatile option.

Product Information

Standard Information

• Brand: Century
• MPN: EM3463

Technical Specifications

• Phase: 1
• Output HP: 1/2-1/6 HP
• Voltage: 115 V
• Speed: 1075 RPM
• Service Factor: 1.0
• Frame: 48Y
• Enclosure: Open Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 7.0 A
• Insulation Class: B
• Number of Speeds: 4
• Electrical Type: Permanent Split Capacitor
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Shaft Diameter: 0.500 in
• Overall Length: 10.36 in
• Packaged Length: 13.78 in
• Packaged Width: 6.41 in
• Packaged Height: 6.81 in
