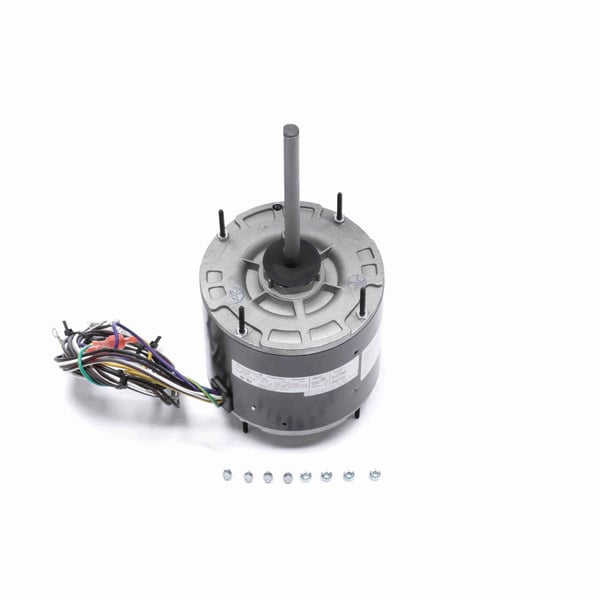

CENTURY EM3459F PRO-E SERIES Condenser Fan Motor 1/3-1/8 HP

Product Description

The Century EM3459F PRO-E Series condenser fan motor is built for air over applications. This motor operates efficiently at 208-230 volts and 60 hertz, outputting a power of one-third to one-eighth horsepower. Key features include class F insulation, automatic thermal protection, and a robust design with ball bearings for smooth performance.

• Requires a 7.5 Mfd-370 volts capacitor (not included)
• Thermally protected for safety
• Extended studs for various mounting options

Product Highlights

The Century EM3459F is engineered for condenser fan applications, ensuring reliable performance through its durable construction and built-in thermal safeguards.

Product Information

Standard Information

• Brand: Century
• MPN: EM3459F

Technical Specifications

• Phase: 1
• Output HP: 1/3-1/8 HP
• Output KW: 0.25 kW
• Voltage: 208-230 V
• Speed: 825 RPM
• Service Factor: 1
• Frame: 48Y
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Current: 1.8-2.0 A
• Duty: Air Over
• Insulation Class: F
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 8
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 12.45 inches
• Frame Length: 4.94 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6.7 inches
• Motor Type: PSC
• Motor Mounting Position: Vertical
• Motor Mounting Type: Stud/Belly Band
• Shaft Size: 1/2 x 6.7 IN
• Capacitor Value: 7.5 MFD 370 VAC
• Bearing Type: Ball
• Application Type: Condenser Fan Motor
