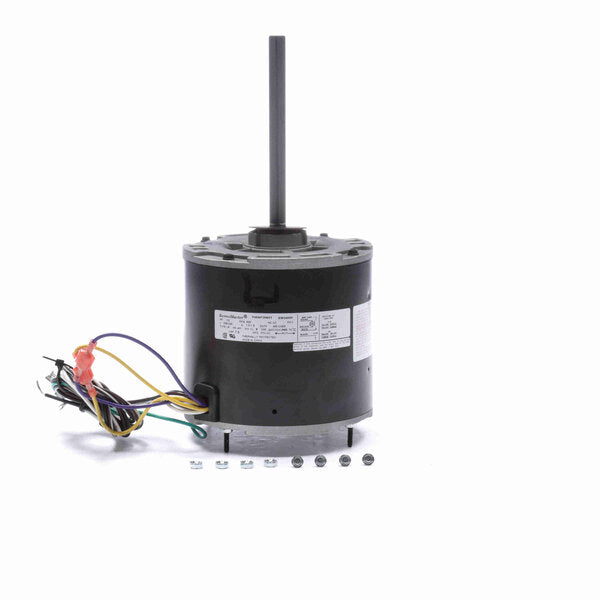

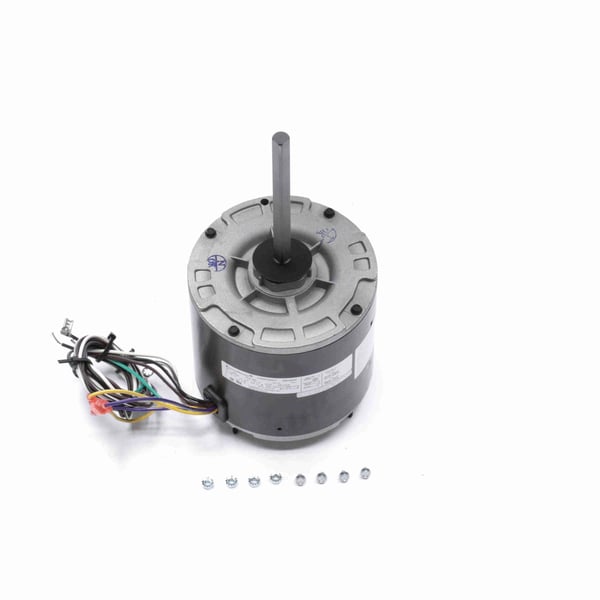

CENTURY EM3405F PRO-E SERIES Condenser Fan Motor 1/3 HP

Product Description

The Century EM3405F PRO-E Series Condenser Fan Motor is a 1/3 HP motor made for condenser fan applications. This motor has a diameter of five point six inches and comes in a forty-eight frame size. It requires a seven point five Mfd-370 Volts capacitor which is sold separately. The design includes thermal protection and is totally enclosed for air over operation. It features Class F insulation, suitable for ambient temperatures up to seventy degrees Celsius.

• Permanent Split Capacitor (PSC) design for reliable performance
• Thermally protected with an automatic overload safeguard
• Ball bearing construction with a half-inch diameter shaft with double flat

Product Highlights

This motor is ideal for HVAC and refrigeration applications that need a dependable and efficient motor. The extended studs enhance mounting options for various installations.

Product Information

Standard Information

• Brand: Century
• MPN: EM3405F

Technical Specifications

• Phase: 1
• Output HP: 1/3 HP
• Output KW: 0.25 kW
• Voltage: 208-230 V
• Speed: 825 rpm
• Service Factor: 1
• Frame: 48Y
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Current: 1.6-1.8 A
• Duty: Air Over
• Insulation Class: F
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 8
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 11.67 inches
• Frame Length: 5.19 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6.0 inches
• Application Type: Condenser Fan Motor
• Bearing Type: Ball
• Material: Rolled Steel
• Mounting Type: Extended Stud
• Special Features: Permanent Split Capacitor Motor
• Temperature Rating: 70 deg C
• Type: 8-Pole
