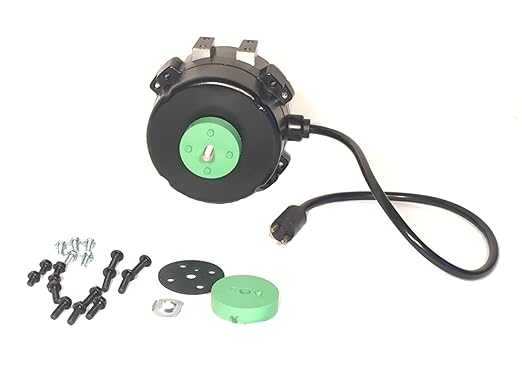

CENTURY EC5411 Electronically Commutated Fan Motor 115V/230V 4 Watt to 25 Watt Range REPLACEMENT MD5411

Product Description

The CENTURY EC5411 is an electronically commutated fan motor designed for both 115V and 230V systems, offering a power range from 4 to 25 Watts. The motor features clockwise opposite shaft end (CWOSE) rotation and meets UL standards, providing reliable performance with Class B insulation and built-in thermal protection.

• Equipped with a Lyall type straight plug with a lead length of sixteen inches.
• Certified IP67/ATEX for dust and water resistance, featuring durable ball bearing construction.
• Flexible installation options with threaded holes located on both the sides and back.

Product Highlights

This fan motor serves as an ideal replacement for multiple models including Genteq MD5411 and MD5411S, Morrill Motors SSC2B12CSHBA1 and SSCB12CSHBV1, Mars 10891, Packard 10013, US Motors EC5411, among others.

Product Information

Standard Information

• Brand: CENTURY
• Model: EC5411

Technical Specifications

• Speed: 1550 RPM
• Voltage: 115/230 Volts
• Power Range: 4 to 25 Watts
• Rotation: Clockwise Opposite Shaft End (CWOSE)
• Operating Range: -40 to 130F
• Current: 0.08 to 0.66 Amps
• Enclosure Rating: IP67/ATEX
