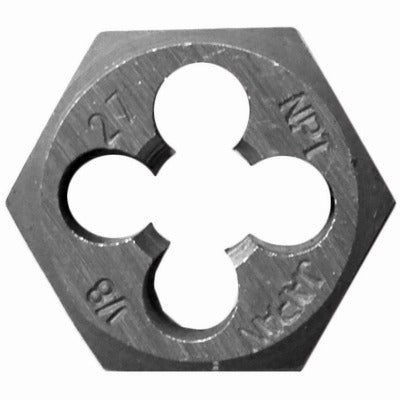

Century Drill Tool Co Inc 96301 Hex Pipe Die 1/8-27 Npt

Product Description

The CENTURY DRILL TOOL CO INC 96301 is a hexagon pipe die designed for cutting 1/8-27 NPT (National Pipe Thread) external threads by hand. Measuring 1 inch across the flats, this die is heat treated and tempered to file-hard hardness, which extends service life and maintains thread accuracy over repeated use. Threads are precision cut and accurately formed to produce consistent, exact results with each pass. This die ships in a package quantity of 2 and is sized for standard hand die stock holders used in pipe threading work.

This die is suited for plumbing, HVAC, and general mechanical trade applications where 1/8-27 NPT threads must be cut on pipe or fittings in the field or shop. The 1/8-27 thread size is common on small-diameter fittings, pressure taps, gauge ports, and fuel or pneumatic line connections. Because it is designed for hand cutting, it works in tight quarters where power threading equipment cannot be used. Licensed plumbers, pipefitters, and HVAC technicians routinely use this type of die when fabricating or repairing threaded pipe connections on the job.

Key Features

• 1/8-27 NPT thread profile for cutting standard tapered pipe threads
• Hexagon body measures 1 inch across the flats for use with standard hand die stocks
• Heat treated and tempered to file-hard finish for extended service life
• Precision-formed cutting flutes produce consistent, accurate threads
• Designed for hand cutting applications — no power threader required
• Package includes 2 dies

Compatibility

Designed for use with standard hex die stocks sized for a 1-inch across-the-flats hex die used in hand threading of 1/8-27 NPT pipe threads.

Installation Notes

A licensed plumber or pipefitter should cut NPT threads in accordance with applicable IPC or IFGC standards for the installation type. Secure the workpiece firmly before threading to prevent movement. Apply cutting oil liberally during the threading process to reduce heat buildup and improve thread quality. Inspect the finished thread with a NPT thread gauge or test fitting before pressurizing any line.
