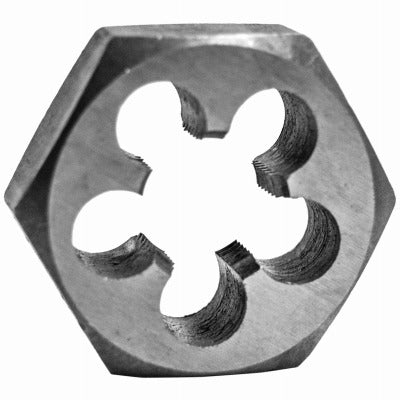

Century Drill Tool Co Inc 96207 7/16-14 Nc Hex Die

Product Description

The CENTURY DRILL TOOL CO INC 96207 is a 7/16-14 national coarse fractional hex die designed for hand cutting external threads. Heat treated and tempered to file-hard hardness, it delivers precision-formed threads with consistent dimensional accuracy across repetitive use. At 1 inch across the flats, it fits standard hex die stocks used by machinists, plumbers, pipefitters, and maintenance technicians. The part ships in a package quantity of two, making it practical for bench stock or field kits.

This die is suited for hand threading applications on 7/16-inch diameter fasteners and rod stock with a 14 threads-per-inch national coarse pitch. Typical uses include threading new rod, chasing damaged external threads, or fabricating custom fastener lengths in the field or shop. It is appropriate for use in light industrial, mechanical, and trade maintenance settings where hand threading tools are standard equipment.

Key Features

• 7/16-14 NC thread form for standard national coarse pitch threading
• Heat treated and tempered to file-hard finish for extended service life
• Precision-cut threads for accurate, consistent thread form on each pass
• 1 inch across the flats fits standard hex die stock handles
• Package quantity of 2 for backup availability or multi-user kits
• Designed for hand cutting applications, not power drive use

Compatibility

Designed as an OEM-style replacement or stock hex die for use with standard 1-inch hex die stocks compatible with 7/16-14 NC fractional dies.

Installation Notes

Installation is performed by machinists or trade professionals using a hand die stock sized for 1-inch hex dies. Ensure the workpiece is clean, deburred, and properly secured before threading. Apply cutting oil to the die and workpiece to reduce friction and improve thread quality. Do not use this die with power-driven tools unless the die stock is rated for powered operation.
