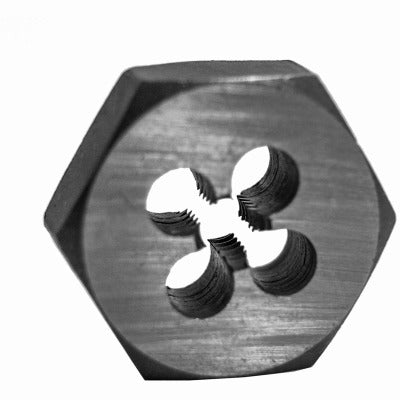

Century Drill Tool Co Inc 96205 3/8-16 Nc Hex Die

Product Description

The CENTURY DRILL TOOL CO INC 96205 is a 3/8-16 national coarse fractional hex die designed for hand cutting external threads on bolts, rods, and fasteners. The die is heat treated and tempered to file-hard hardness, producing clean, consistently formed threads that hold tolerance across repeated use. Measuring 1 inch across the flats, it fits standard hex die stocks for controlled hand threading. Packaged in a quantity of 2, the 96205 is suited for maintenance technicians, plumbers, electricians, and HVAC service pros who need to recut or extend threads in the field.

This hex die is intended for hand threading applications on 3/8-16 NC fasteners and threaded rod. The 3/8-16 thread specification — 3/8 inch nominal diameter, 16 threads per inch, national coarse — is one of the most common fastener standards in mechanical, electrical, and plumbing trades. It is appropriate for use on mild steel, threaded rod, and standard-grade fasteners where a die stock wrench provides the turning force. The compact hex profile makes it easy to locate and drive without specialized equipment.

Key Features

• 3/8-16 NC (national coarse) thread specification for wide fastener compatibility
• Heat treated and tempered to file-hard hardness for extended service life
• Precision-formed threads for consistent, accurate cuts on each pass
• 1 inch across the flats — fits standard hex die stocks
• Designed for hand cutting applications in the field or shop
• Packaged as a quantity of 2 per package

Compatibility

Designed for use with standard hex die stocks that accept a 1-inch hex die. Suitable for cutting 3/8-16 NC external threads on mild steel rod and fasteners.

Installation Notes

A licensed or qualified tradesperson should select the correct die size before threading to avoid mismatched or cross-threaded fasteners. Secure the workpiece firmly in a vise before beginning hand threading operations. Apply cutting oil to the die and workpiece to reduce heat and extend die life. Reverse the die a half turn periodically while threading to break chips and maintain clean thread form.
