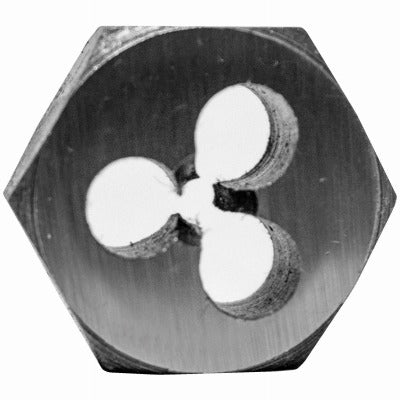

Century Drill Tool Co Inc 96104 10-24 Nc Hex Threading Die

Product Description

The CENTURY DRILL TOOL CO INC 96104 is a 10-24 national coarse (NC) hex threading die designed for hand cutting external threads on machine screws and fasteners. The die is heat treated and tempered to file-hard hardness, producing clean, consistent threads that meet NC thread standards. At 1 inch across the flats, it fits standard hex die stocks and handles used in hand threading applications. This tool is suited for machinists, maintenance technicians, pipefitters, and general trade professionals who need to cut or restore 10-24 NC threads in the field or shop.

The 96104 is used in hand threading applications where a 10-24 national coarse thread profile is required. This includes cutting new threads on rod stock, bolts, or machine screws, as well as re-chasing damaged or corroded threads. The 1-inch hex size fits standard adjustable die stocks. Typical applications span HVAC equipment assembly, electrical panel work, plumbing fixture installation, and general mechanical maintenance where 10-24 fasteners are common. The package includes 2 dies per unit.

Key Features

• 10-24 NC thread profile for cutting national coarse machine screw threads
• Heat treated and tempered to file-hard hardness for extended service life
• Precision-cut threads accurately formed for consistent, repeatable results
• 1 inch across the flats fits standard hex die stocks and holders
• Designed specifically for hand cutting applications
• Packaged as 2 dies per unit

Compatibility

Designed for use with standard 1-inch hex die stocks and adjustable die holders used in hand threading applications requiring a 10-24 national coarse thread profile.

Installation Notes

This die is intended for hand threading use by qualified tradespeople using a standard die stock or adjustable handle. Secure the workpiece firmly before applying the die to prevent slipping and ensure straight thread engagement. Apply cutting oil to the die and workpiece to reduce heat and extend die life. Follow applicable shop safety practices when cutting threads on hardened or stainless materials.
