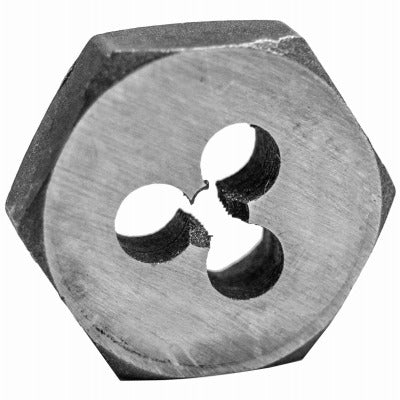

Century Drill Tool 97614 Metric Hex Die 10.0x1.25

Product Description

The CENTURY DRILL TOOL CO INC 97614 is a metric hexagon die designed for hand cutting external threads on bolts, rods, and fasteners. It cuts a 10.0 mm diameter thread with a 1.25 mm pitch, making it a standard metric coarse thread size used across a wide range of mechanical assemblies. The die is heat treated and tempered to file hard hardness, which supports accurate thread formation and extended service life. Each package includes 2 dies. Weighing 0.12 pounds, this die is suited for bench work and field threading tasks performed by mechanics, plumbers, electricians, and general tradespeople.

This die is intended for hand cutting applications where a standard M10x1.25 external thread needs to be cut or restored. It fits into a standard hex die stock or wrench, allowing controlled, manual thread cutting on threaded rod, bolts, or round stock. It is well suited for maintenance and repair work in mechanical, plumbing, and general construction trades where field threading is required without power tooling.

Key Features

• 10.0 mm diameter with 1.25 mm pitch — standard metric coarse thread profile
• Hexagon die form fits standard hex die stocks and wrenches
• Heat treated and tempered to file hard for durable, long-lasting threads
• Precision cut threads for consistent, accurate thread formation
• Designed for hand cutting applications — no power tooling required
• Package includes 2 dies per unit

Compatibility

Designed for use with standard hex die stocks and hand threading tools that accept a hexagon die form. Suitable for cutting M10x1.25 metric coarse external threads on compatible round stock, rod, or fasteners.

Installation Notes

This die is installed into a compatible hex die stock or die wrench before use. Secure the die firmly in the stock before beginning thread cutting. Apply cutting oil to the workpiece to reduce friction and improve thread quality. Advance the die slowly and back off periodically to clear chips and prevent binding.
