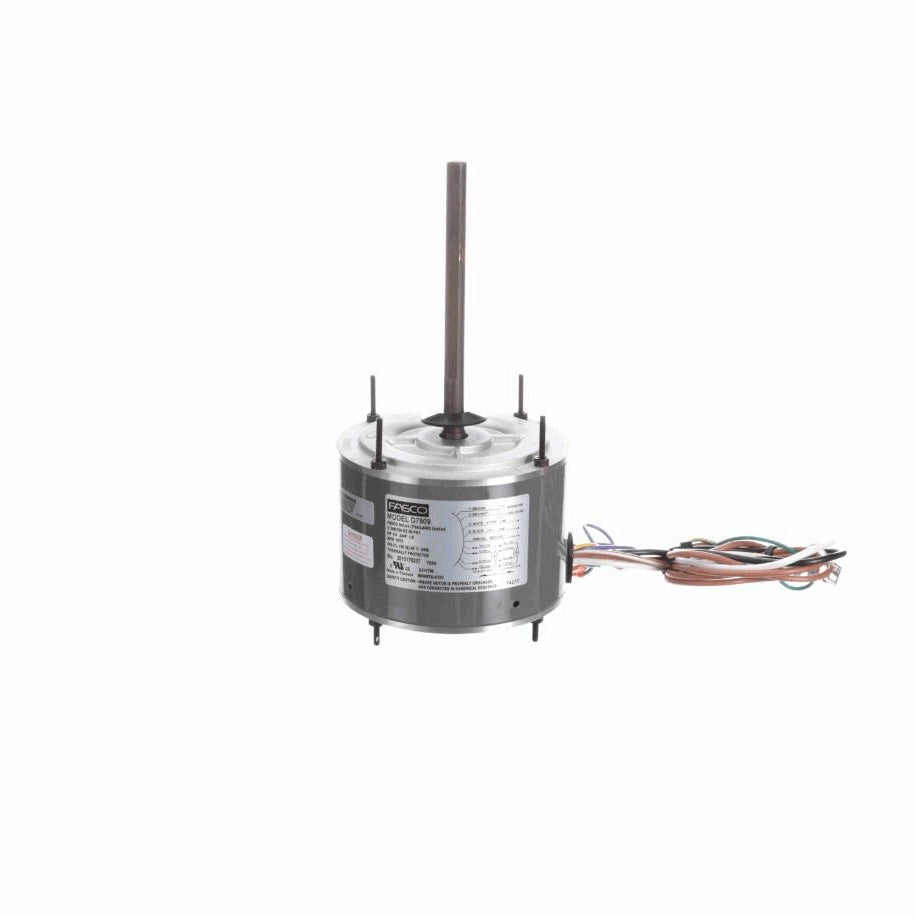

Century D7909 Condenser fan motor 1/4 HP (48 frame) 001D7909

Product Description

The Century D7909 is a 1/4 HP condenser fan motor rated 208-230 V, 1.8 A, and 1075 RPM designed for condenser and outdoor fan applications. It is a single-phase, single-speed, 6-pole motor with a totally enclosed air over (TEAO) enclosure and Class B insulation for 60°C ambient operation. The motor uses a permanent split capacitor design and requires an external 5 µF run capacitor.

• Electrical: 1/4 HP, 208-230 V, 1.8 A, 1075 RPM, single phase, single speed, 6 poles
• Protection and duty: Totally enclosed air over (TEAO), Class B insulation, automatic reset thermal overload, continuous duty
• Mechanical: 48 frame (5.6 in diameter), 1/2 in x 6.5 in double-flat shaft, ball bearings, 27 in leads, extended studs; requires external 5 µF run capacitor

Product Highlights

1/4 HP TEAO condenser fan motor, 1075 RPM, 48 frame, 5 µF run capacitor required

Product Information

Standard Information

• Brand: CENTURY
• Manufacturer Part Number: D7909
• Country of Origin: Thailand
