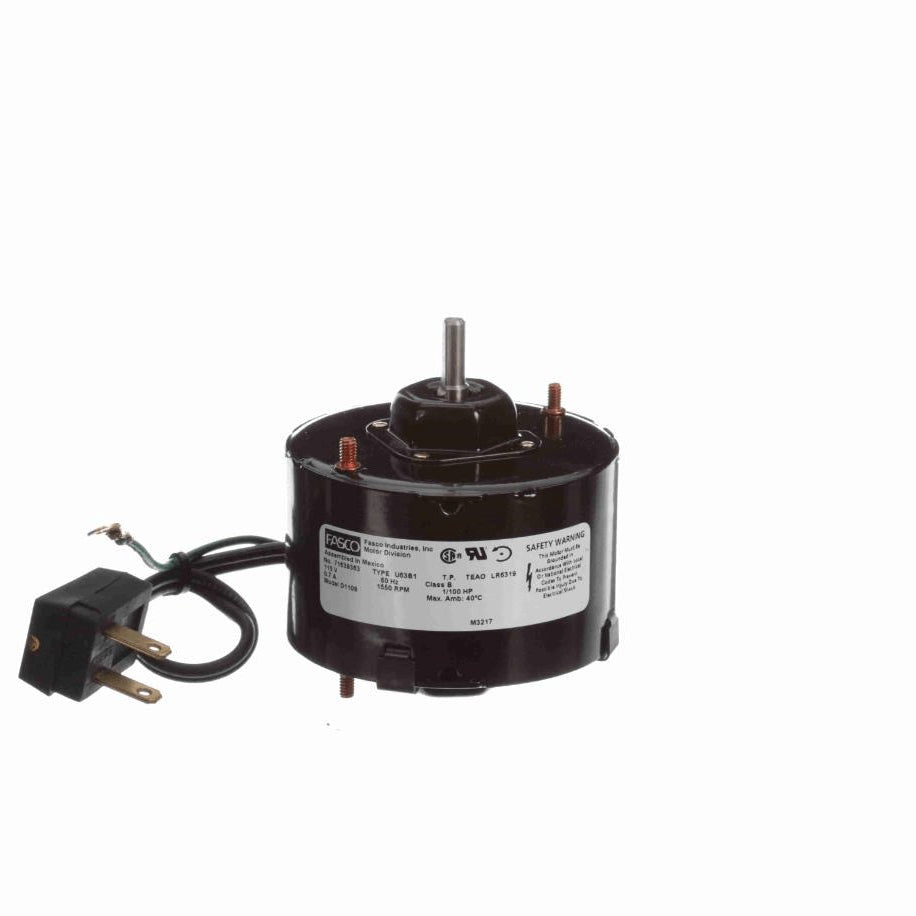

Century D1109 Shaded pole motor 1/100 HP (3.3 in) D1109

Product Description

Century D1109 is a 3.3-inch diameter shaded pole motor rated 1/100 HP and designed for totally enclosed air-over (TEAO) applications. It operates at 115 V, 60 Hz, draws 0.70 A, and runs at 1550 RPM single speed with thermal protection and Class B insulation for 40 °C ambient. The motor uses sleeve bearings, a 5/16-inch shaft with flat, 7-inch leads with molded plug, and includes extended studs and hex mounting hubs. UL recognized and CSA certified.

• Electrical: 1/100 HP (0.01 kW), 115 V, 60 Hz, 0.70 A, 1550 RPM, single speed
• Construction and protection: Shaded pole design, totally enclosed air over (TEAO), thermally protected, Class B insulation (40 °C)
• Mechanical: 3.3 in frame, 5/16 in shaft with flat, sleeve bearings, 7 in leads with molded plug, extended studs and hex mounting hubs

Product Highlights

Shaded pole TEAO motor, 1/100 HP, single speed 1550 RPM, thermally protected, UL recognized and CSA certified.

Product Information

Standard Information

• Brand: CENTURY
• Manufacturer Part Number: D1109
• Country of Origin: Mexico
