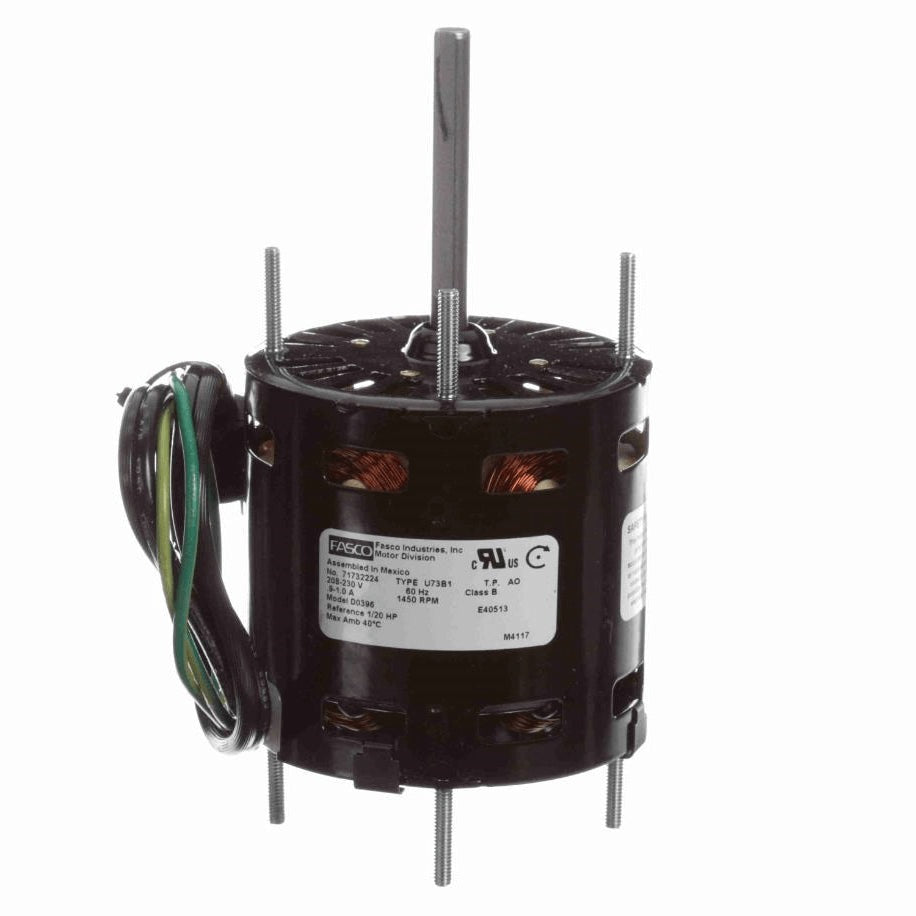

Century D0396 Kramer-Trenton Refrigeration Motor 1/20 HP (3.3 in Diameter) Replaces 396

Product Description

The Century D0396 is a refrigeration/HVAC replacement motor rated 1/20 HP and intended for 208-230 V operation. It delivers 1450 RPM and uses sleeve bearings with CWSE rotation. The motor has a compact 3.3 inch diameter and approximately 3 1/4 inch length, with a 5/16 inch by 2 1/2 inch shaft and is supplied with a lead and plug assembly for connection.

• Electrical: 208-230 V, 1450 RPM, approximately 1.1 A; single phase, 60 Hz, single speed
• Mechanical: 3.3 in diameter, ~3 1/4 in length, 5/16 in x 2 1/2 in shaft, CWSE rotation, sleeve bearings
• Features: Shaded pole design, open air over enclosure (OAO), thermally protected, supplied with lead and plug assembly

Product Highlights

Compact 1/20 HP refrigeration motor for condenser and HVAC replacement applications with sleeve bearings and CWSE rotation.

Product Information

Standard Information

• Brand: CENTURY
• Manufacturer Part Number: D0396
• Country of Origin: United States
