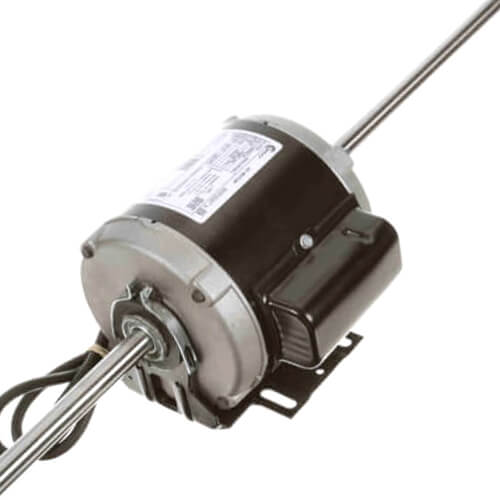

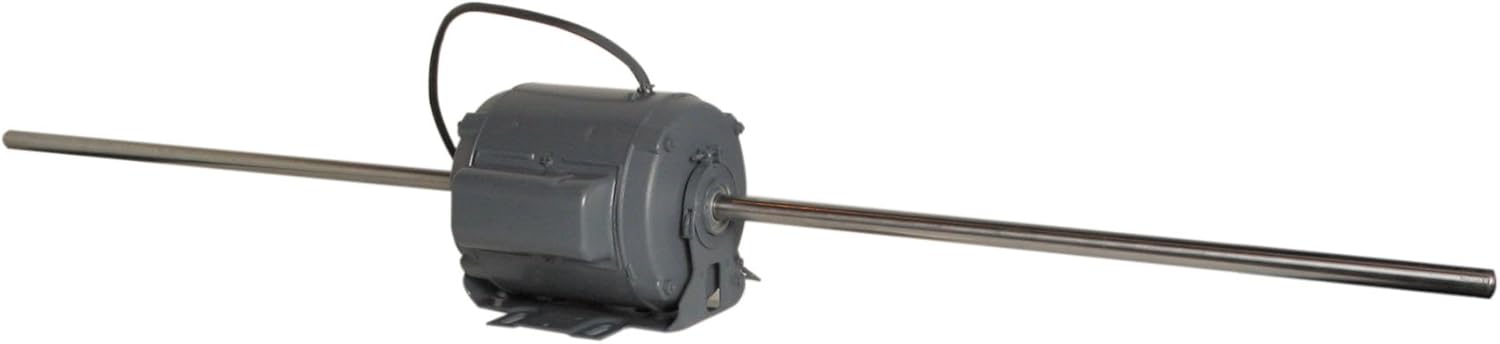

Century C035 1/6 HP Single Phase 800 RPM 230V Totally Enclosed Nesbitt Electric Motor with Resilient Mount

Product Description

The Century C035 Nesbitt Electric Motor is an essential component for HVAC systems. Designed for use in schools, hotels, hospitals, and other large facilities, this motor is known for its reliability and performance.

• 1/6 HP
• 800 RPM
• 230 volts

Product Highlights

This motor is a direct replacement for ITT Nesbitt HVAC wall units. It features a cushion base and permanent split capacitor. Suitable for environments where dust and moisture are concerns. Its totally enclosed design ensures longevity and durability.

Product Information

Standard Information

• Brand: Century
• MPN: C035

Technical Specifications

• Voltage: 230 volts
• Horsepower: 1/6 HP
• Speed: 800 RPM
• Phase: Single Phase
• Frame: 56Z
• Mount: Cushion Base
• Enclosure Type: Totally Enclosed Air Over (TEAO)
• Amperage: 1.6 amps
• Diameter: 6.5 inches
• Rotation: CW
• Poles: 8
• Bearings: Ball
• Insulation Class: B
• Max Ambient Temp: 104°F
• Hertz: 60 Hz
• Overload Protection: Thermally
• Duty: Continuous
• Country of Origin: Mexico
