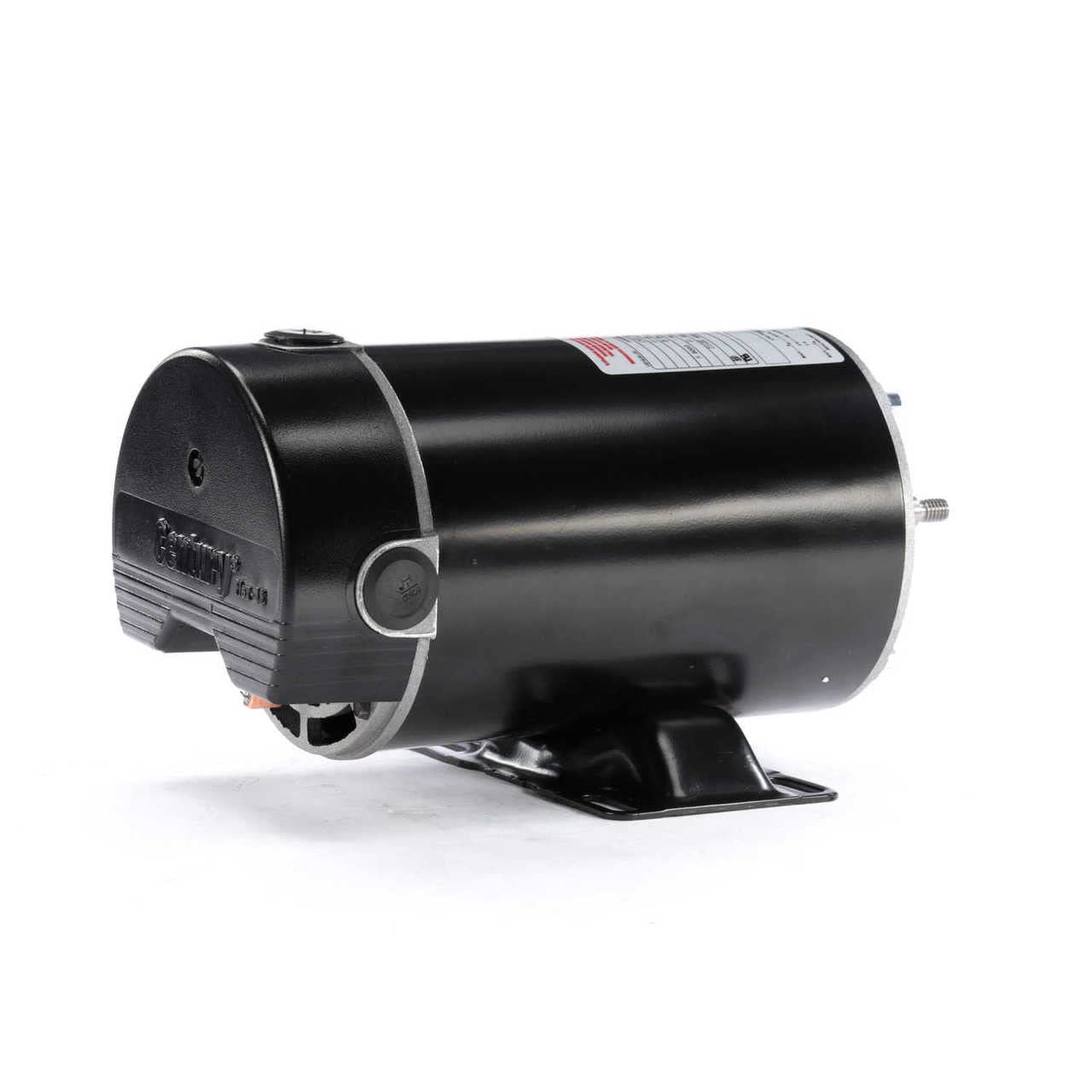

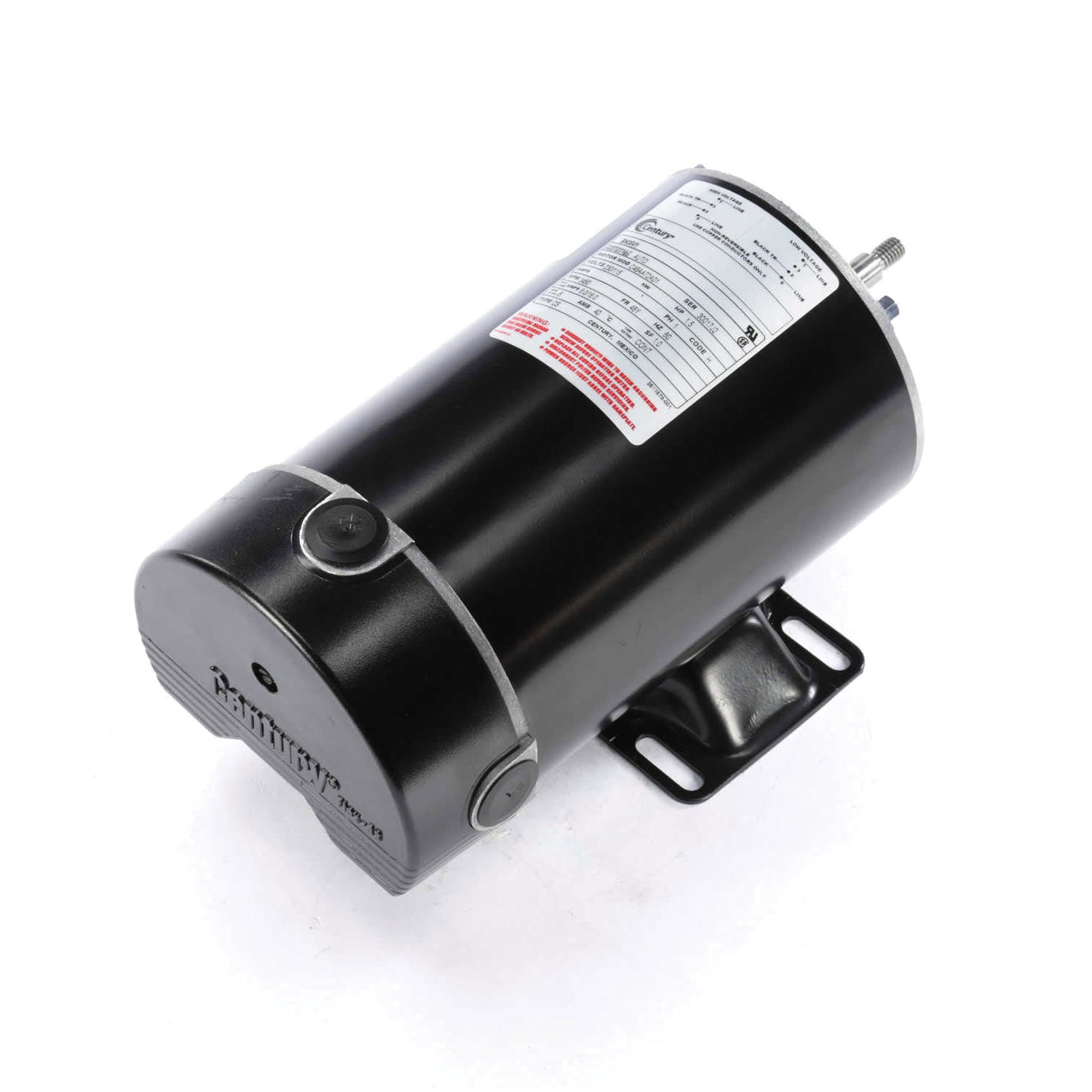

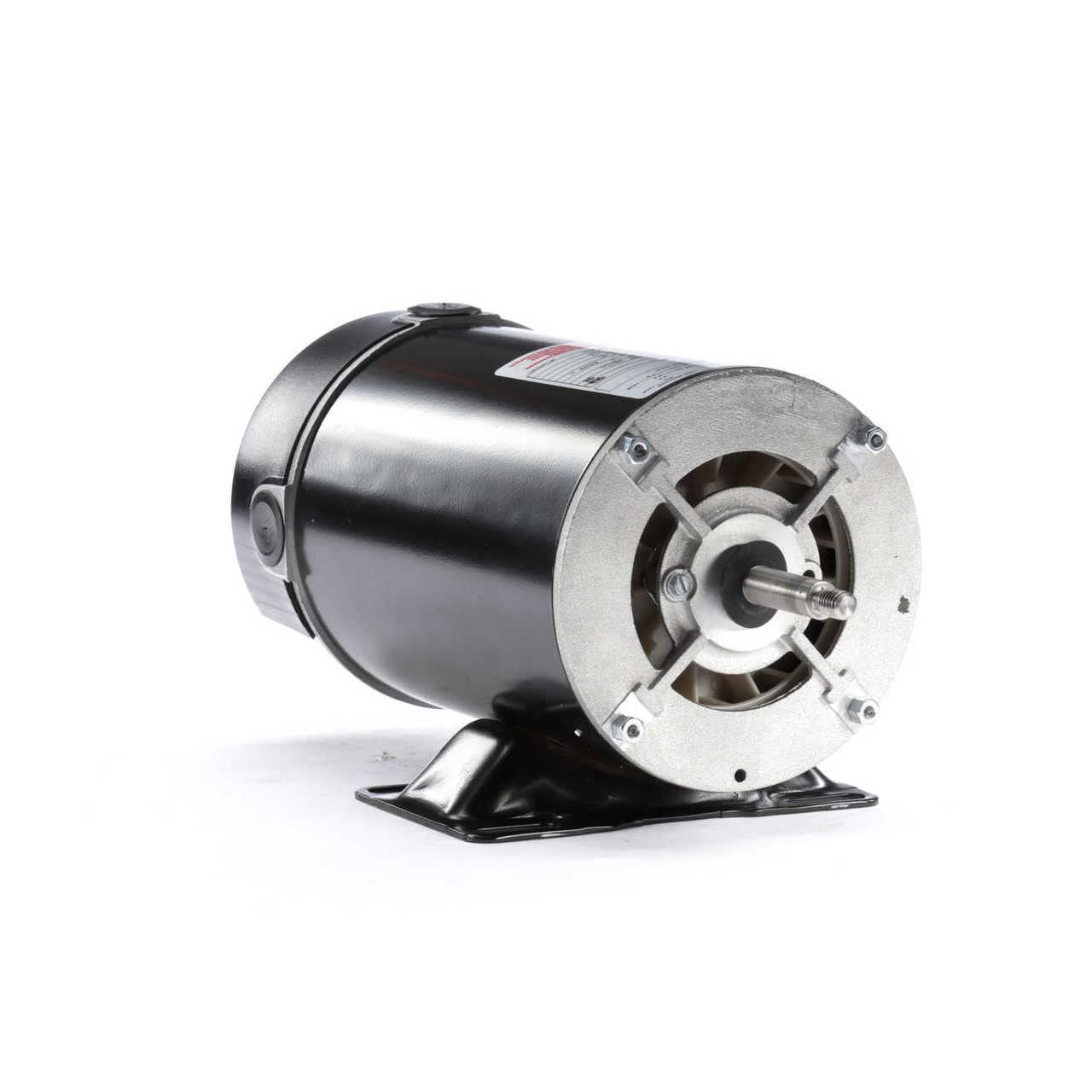

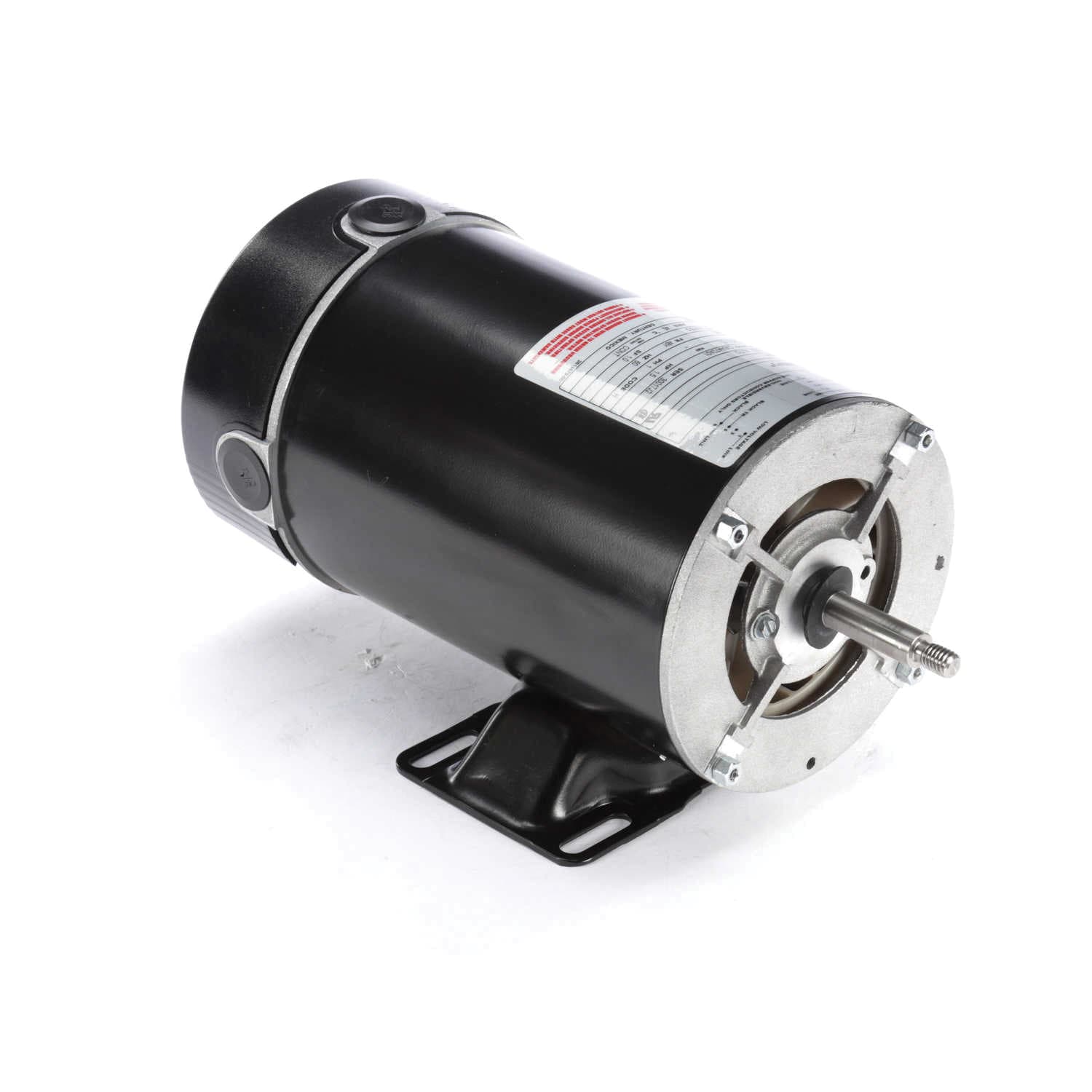

Century BN35V1 Pool Pump Motor 1-1/2 HP 3450 RPM 115/230V

Product Description

The Century BN35V1 pool pump motor is an essential component designed for reliability and efficient operation. Known for its robust construction, this motor ensures optimal performance for your pool systems.

• Dual voltage design (115/230V) accommodates varying power supplies.
• High-speed operation at 3450 RPM ensures effective water circulation.
• Stainless steel shaft and ball bearings contribute to the motor's durability and long service life.

Product Highlights

This motor features a capacitor-start mechanism, ensuring a quick and reliable start. Its open dripproof enclosure allows for safe operation in moist environments. The auto thermal protection prevents overheating, promoting safety and extending the motor's lifespan.

Product Information

Standard Information

• Frame Type: 48Y
• Service Factor: 1.00

Technical Specifications

• Amperage: 16.0/8.0 Amps
• Phase: Single
• Motor Mounting Type: Rigid Base
• Bearing Type: Ball

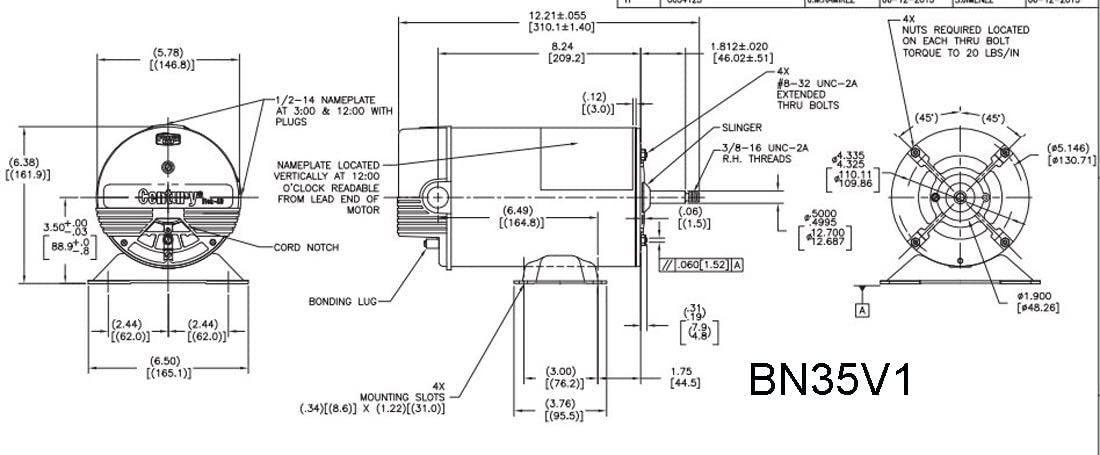

• Shaft Dimensions: 1/2 inch diameter, 1-13/16 inches long
• Protection: Auto Motor Thermal
• Rotation: CCWSE
• Country of Origin: Mexico
