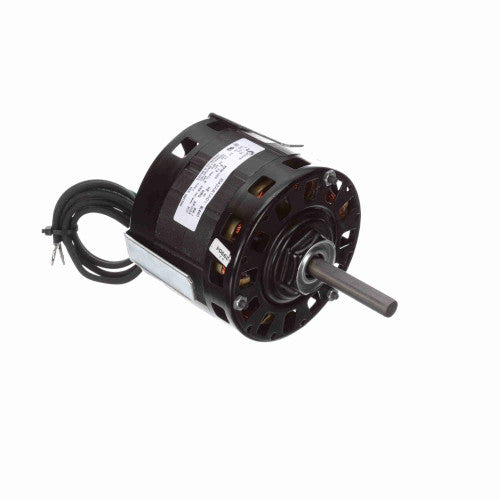

Century BL6407 OEM Replacement Motor 1/6 HP 1000 RPM 115 V 42 Frame

Product Description

The Century BL6407 is an OEM replacement motor with a power output of 1/6 HP, designed to operate at a voltage of 115 V and a speed of 1000 RPM. This motor features a 42 frame and an open air over enclosure, making it suitable for various applications. It includes thermal protection to ensure safe operation.

• OEM Direct Replacement Motor
• 5 inches Diameter - 42 Frame
• Thermal Protection Included

Product Highlights

This motor provides reliable performance for applications that require an efficient shaded pole motor.

Product Information

Standard Information

• Brand: Century
• MPN: BL6407

Technical Specifications

• Phase: 1
• Output HP: 1/6 HP
• Voltage: 115 V
• Speed: 1000 RPM
• Service Factor: 1.0
• Frame: 42Y
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 7.8 A
• Insulation Class: B
• UL Recognized: Yes
• CSA Certified: Yes
• Number of Speeds: 1
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Rotation: CW Shaft End
• Drive End Bearing: Sleeve
• Shaft Type: Flat
• Overall Length: 7.41 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 3 inches
