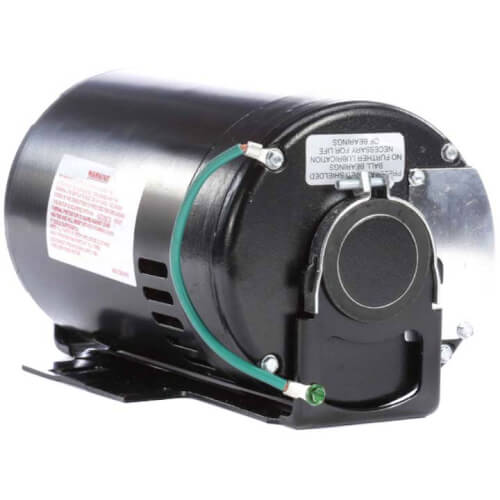

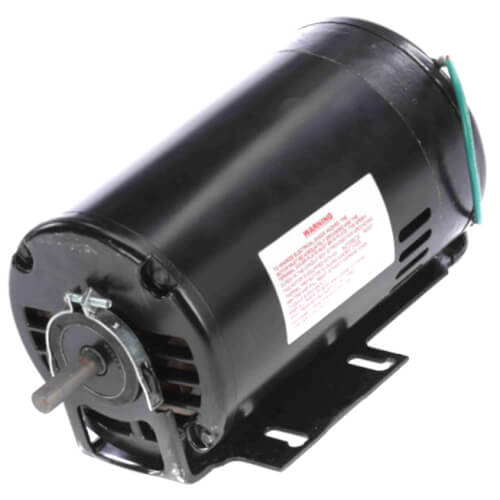

Century BF1102 Fan and Blower Motor 1 HP 115/208-230V

Product Description

The Century BF1102 is a fan and blower motor with a power rating of 1 horsepower and a voltage range of 115/208-230 volts. This motor features a capacitor start design, suitable for various HVAC applications. It operates at a continuous duty cycle and has a reversible rotation, making it versatile for different setups.

• Power: 1 HP
• Amperage: 12.6/6.3
• Frame Size: 48

Product Highlights

This motor is ideal for compressors, pumps, blowers, and fans. It is designed with an open drip-proof enclosure and is equipped with resilient base mounting for stability. The automatic overload protection ensures safe operation while the ball bearing construction allows for smooth performance.

Product Information

Standard Information

• Material: Rolled Steel
• Orientation: Horizontal

Technical Specifications

• Electrical Type: Capacitor Start
• Voltage: 115/208-230
• Rotation: Reversible
• Overload Protection: Automatic
• Bearings Type: Ball
• Ambient Temperature: 40°C
• Duty Cycle: Continuous
