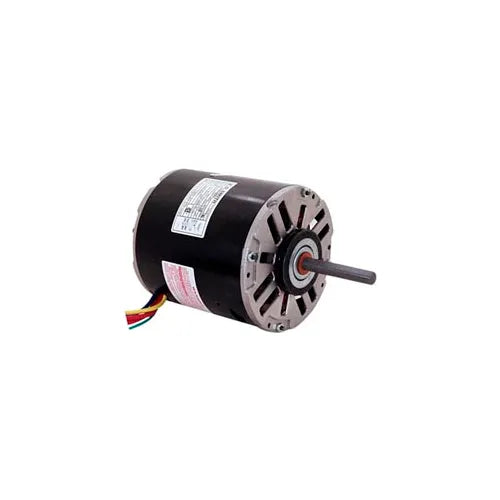

CENTURY BDH1036 Fan and Blower Motor 1/3 HP 460 V

Product Description

The Century BDH1036 fan and blower motor is a one-third horsepower motor that operates on four hundred sixty volts. It is designed for use in ventilation and air circulation applications. This motor spins at one thousand seventy-five RPM and has a semi-enclosed design, making it suitable for HVAC systems and industrial fans.

• Direct drive fan and blower motor
• Thermally protected for safety
• Durable ball bearing construction

Product Highlights

This Century motor ensures reliable operation in demanding conditions, providing effective airflow for commercial and industrial settings.

Product Information

Standard Information

• Brand: Century
• Model: BDH1036

Technical Specifications

• Phase: 1
• Output HP: 1/3 HP
• Voltage: 460 V
• Speed: 1075 RPM
• Frame: 48Y
• Service Factor: 1
• Enclosure: Semi Enclosed
• Thermal Protection: Automatic
• Current: 1.2 A
• Duty: Air Over
• Insulation Class: B
• UL Recognized
• Current: 1.2 A
• Number of Speeds: 2
• Electrical Type: Permanent Split Capacitor
• Shaft Type: Double Flat
• Overall Length: 11.93 inches
• Shaft Diameter: 0.500 inches
• Packaged Length: 16.12 inches
• Packaged Width: 7.31 inches
• Packaged Height: 7.37 inches
• Mounting: Extended Studs
• Rotation: Reversible
