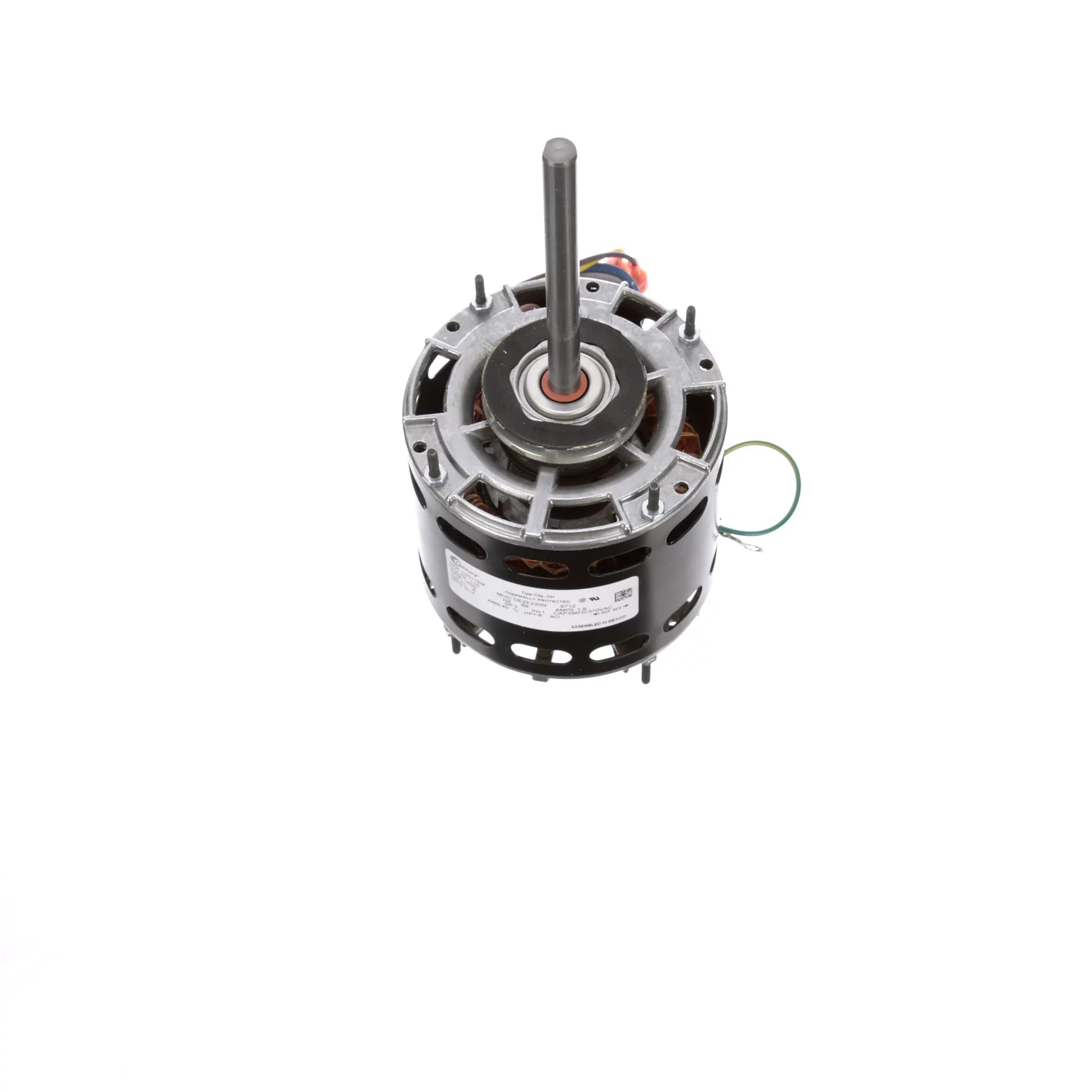

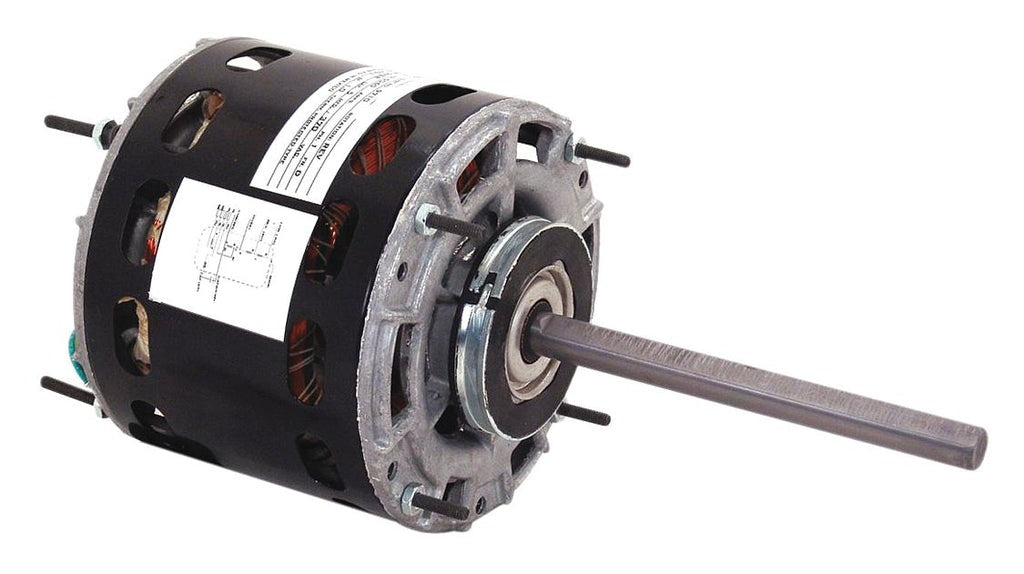

Century 9712 Model RFHP-42FR 1/8 HP (5 inches diameter, 42 frame)

Product Description

Century 9712 is a 1/8 HP PSC furnace blower motor (model RFHP-42FR) designed for air handlers, fan coils, and air conditioning. It operates at 115 VAC, 60 Hz with three speeds and reversible rotation, nominal 1625 RPM. The open air-over enclosure uses Class B insulation rated to 40°C and automatic thermal protection. The motor has sleeve bearings, a 1/2" flat shaft with extended studs and requires a 5 µF run capacitor.

• 5" diameter, 42-frame PSC motor; 1/8 HP, 115 VAC, 1625 RPM, three speeds
• Sleeve bearings with 1/2" flat shaft, extended studs and resilient ring mounting
• Open air-over enclosure, Class B insulation rated to 40°C with automatic thermal protection

Product Highlights

Furnace blower motor for air handlers and fan coils; three-speed reversible PSC design; requires 5 µF run capacitor.

Product Information

Standard Information

• Brand: CENTURY
• Manufacturer Part Number: 9712
• Country of Origin: Mexico
