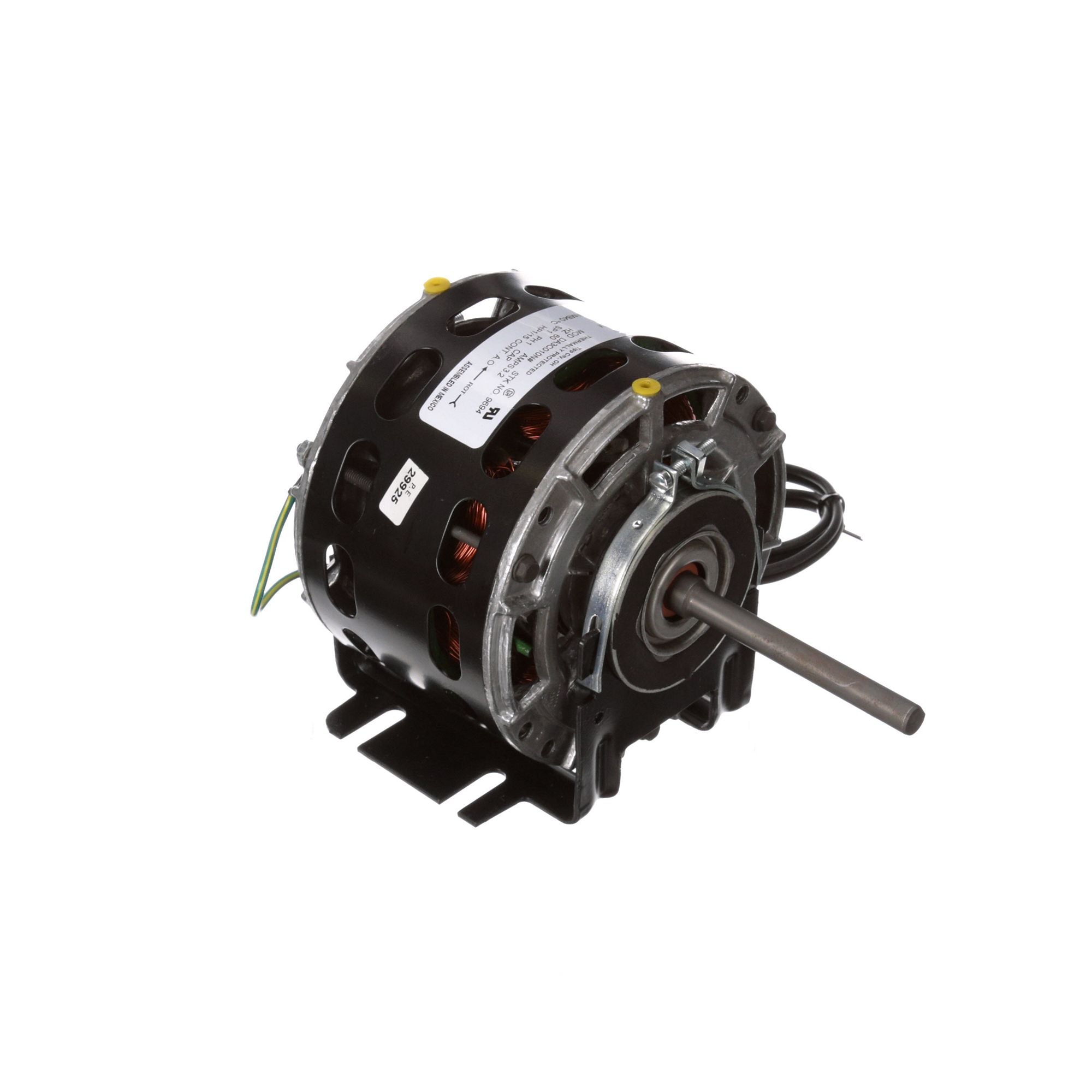

Century 9694 Motor for Furnace Blowers, Air Handlers, Fan Coils, Air Conditioning - 1/15 HP, 1000 RPM, 115V

Product Description

The Century Motor model 9694 is engineered for optimal performance in various HVAC settings, including furnace blowers, air handlers, fan coils, and air conditioning units. This motor is designed to deliver reliable operation with a power rating of 1/15 horsepower and a speed of 1000 revolutions per minute.

• Features a 42Y frame size and resilient base mounting type, suitable for horizontal positioning.
• Equipped with a sleeve bearing and a single-phase, shaded pole motor, ensuring durable and steady performance.
• Thermal protection is automatic, safeguarding the motor from potential over-heating.

Product Highlights

This motor operates at 115 volts and includes a motor shaft designed flat with a diameter of three eighths of an inch. Its robust design is complemented by Class A insulation and a permissible ambient temperature up to 40 degrees Celsius.

Product Information

Technical Specifications

• Weight: 5 lb
• Height: 5.81 inches
• Length: 8.87 inches
• Width: 5.81 inches
• Electrical Specifications: 115 VAC, 3.2 Amps
• Cooling Type: Open Air-Over (OPAO)
• Protection: Automatic
• Compliance: UL Recognized, CSA Certified
• Construction: Shaded Pole, Sleeve Bearing
• Operational Duty: Continuous (S1)
