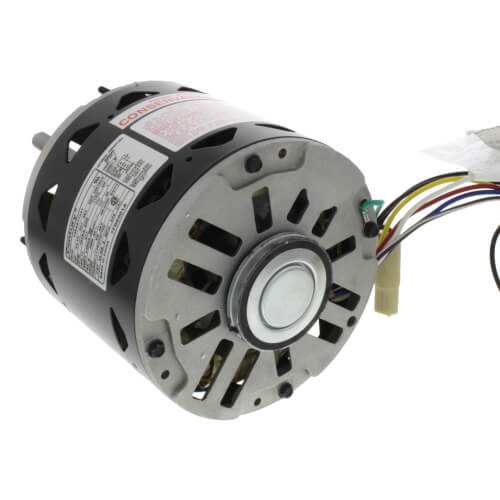

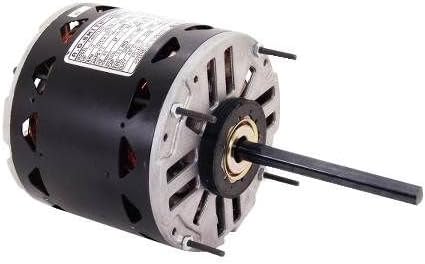

Century 7FD6001A PSC Motor 3/4 - 1/5 HP 5-5/8 inch

Product Description

The Century 7FD6001A is a PSC motor with a diameter of five and five-eighths inches. It operates between three-fourths and one-fifth horsepower with a speed of one thousand seventy-five RPM. This motor is suitable for air-over applications and can rotate in both directions. It operates at two hundred seventy-seven volts and has four different speed settings.

• Reversible rotation
• Operates at 277V
• Features four speeds

Product Highlights

This motor effectively meets the demands of HVAC systems, providing reliable operation for fans and blowers.

Product Information

Standard Information

• Brand: Century Motors
• Part Number: 7FD6001A

Technical Specifications

• Type: Permanent Split Capacitor
• Diameter: 5-5/8 inches
• Horse Power: 3/4 - 1/5
• Voltage: 277V
• Duty: Air Over
• Speeds: 4
• RPM: 1075
• Phase: 1
• Poles: 6
• Mount: Resilient Ring - Extended Studs
• Rotation: Reversible
• Bearings: Ball
• Hertz: 60
• Frame: 48Y
• Insulation Class: B
• Enclosure Type: Open Air Over
• Amperage: 3.6
• Overload Protection: Automatic
• Max Ambient Temp: 104°F
• Motor Orientation: Horizontal
• Output KW: 0.56 kW
• Service Factor: 1.0
• Ambient Temperature: 40°C
• Frequency: 60 Hz
• Current: 3.8 A
• Frame Material: Rolled Steel
• Shaft Diameter: 0.500 inches
• Shaft Extension: 5.0 inches
• Item Package Quantity: 1
