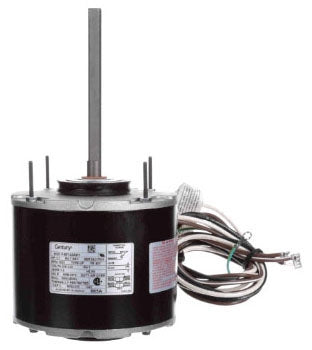

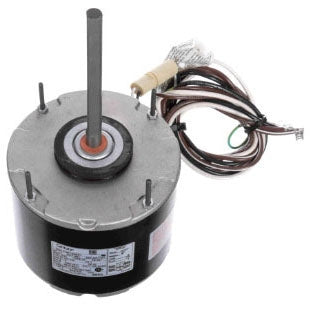

Regal Rexnord - Century Motors 665A 1/3 HP 208 to 230 VAC 60 Hz 1-Phase 1625 RPM

Product Description

The Regal Rexnord Century Motors 665A is a 1/3 horsepower electric motor designed for various HVAC applications. Its power supply ranges from 208 to 230 volts and operates on a single phase at a frequency of 60 Hertz. The motor is rated at 1.9 amps and runs at 1625 RPM. Its durable design includes a semi-enclosed air-over construction and a rolled steel frame.

• Enclosure Type: Semi Enclosed, Air-Over
• Reversible Direction: Yes
• Thermal Protection: Automatic

Product Highlights

This motor is suitable for condenser, heat pump, and refrigeration systems. It features a double flat shaft and sleeve bearings at both drive ends, ensuring reliable performance. The motor includes mounting resilient rings for easy installation in various conditions.

Product Information

Standard Information

• Manufacturer: Regal Rexnord
• MPN: 665A

Technical Specifications

• Power Rating: 1/3 HP
• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 1.9 Amp
• Speed Rating: 1625 RPM
• NEMA Frame Size: 48Y
• Insulation Class: B
• Weight: 13 Pounds
