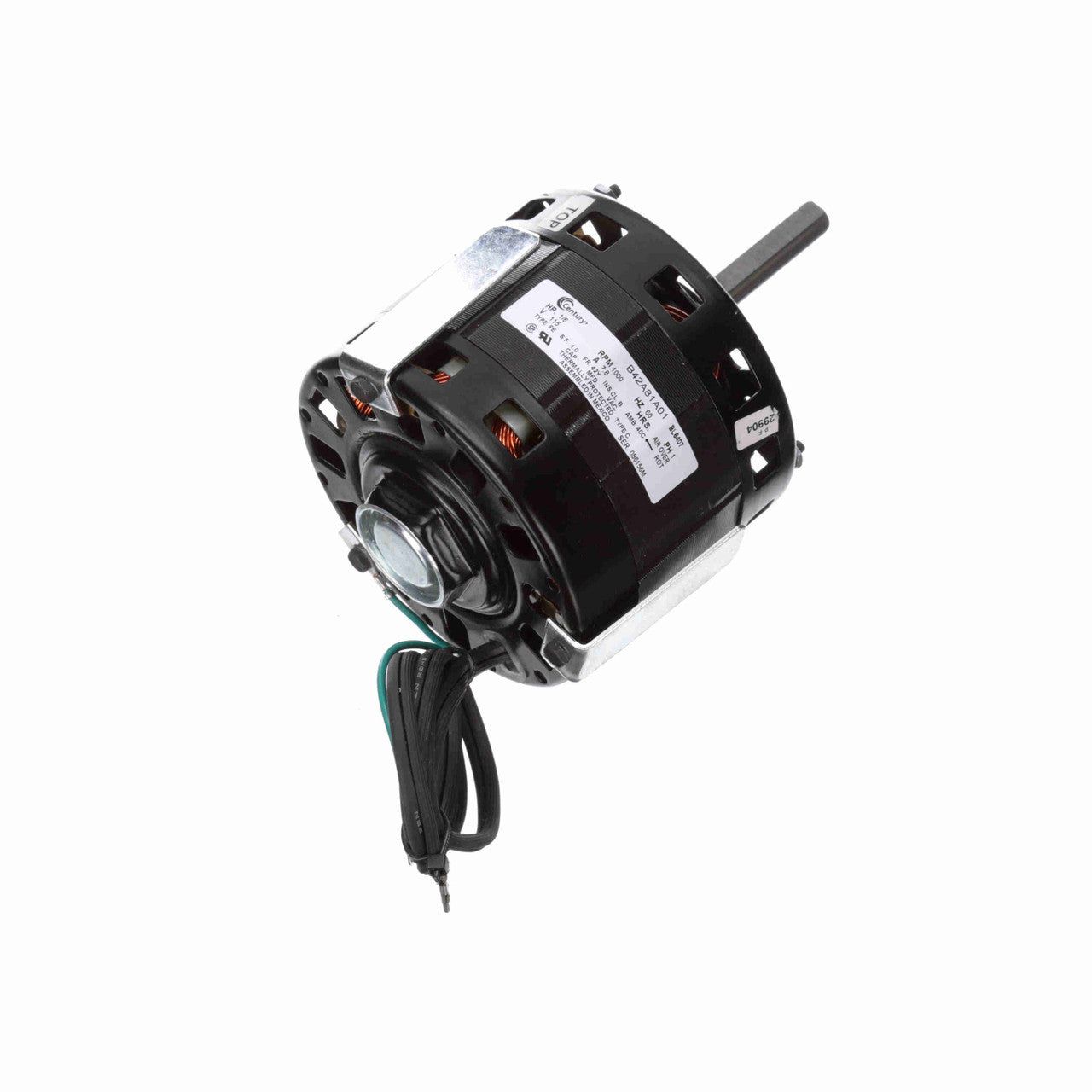

CENTURY 6407 Fan and Blower Motor 1/15 HP

Product Description

The CENTURY 6407 is a fan and blower motor with a power output of 1/15 HP. It operates at 115 volts and 60 Hertz, generating a speed of 1050 RPM. This motor has a 42 frame and a semi-enclosed design, making it suitable for applications like furnace blowers and air handlers.

• Features shaded pole design with thermal protection.
• Comes with sleeve bearings and a three-eighths inch diameter shaft.
• Built with class B insulation, suitable for an ambient temperature of 40 degrees Celsius.

Product Highlights

The motor is compact yet effective for HVAC systems, ensuring reliable air movement performance.

Product Information

Standard Information

• Brand: CENTURY
• MPN: 6407

Technical Specifications

• Phase: 1
• Output HP: 1/15 Hp
• Output KW: 0.05 kW
• Voltage: 115 V
• Speed: 1050 RPM
• Service Factor: 1
• Frame: 42Y
• Enclosure: Semi-enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 40 degrees Celsius
• Frequency: 60 Hz
• Current: 2.8 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 6
• Rotation: Counterclockwise Lead End
• Mounting: Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 5.22 inches
• Shaft Diameter: 0.375 inches
• Shaft Extension: 1.9 inches
• Packaged Length: 8.87 inches
• Packaged Width: 5.81 inches
• Packaged Height: 5.81 inches
