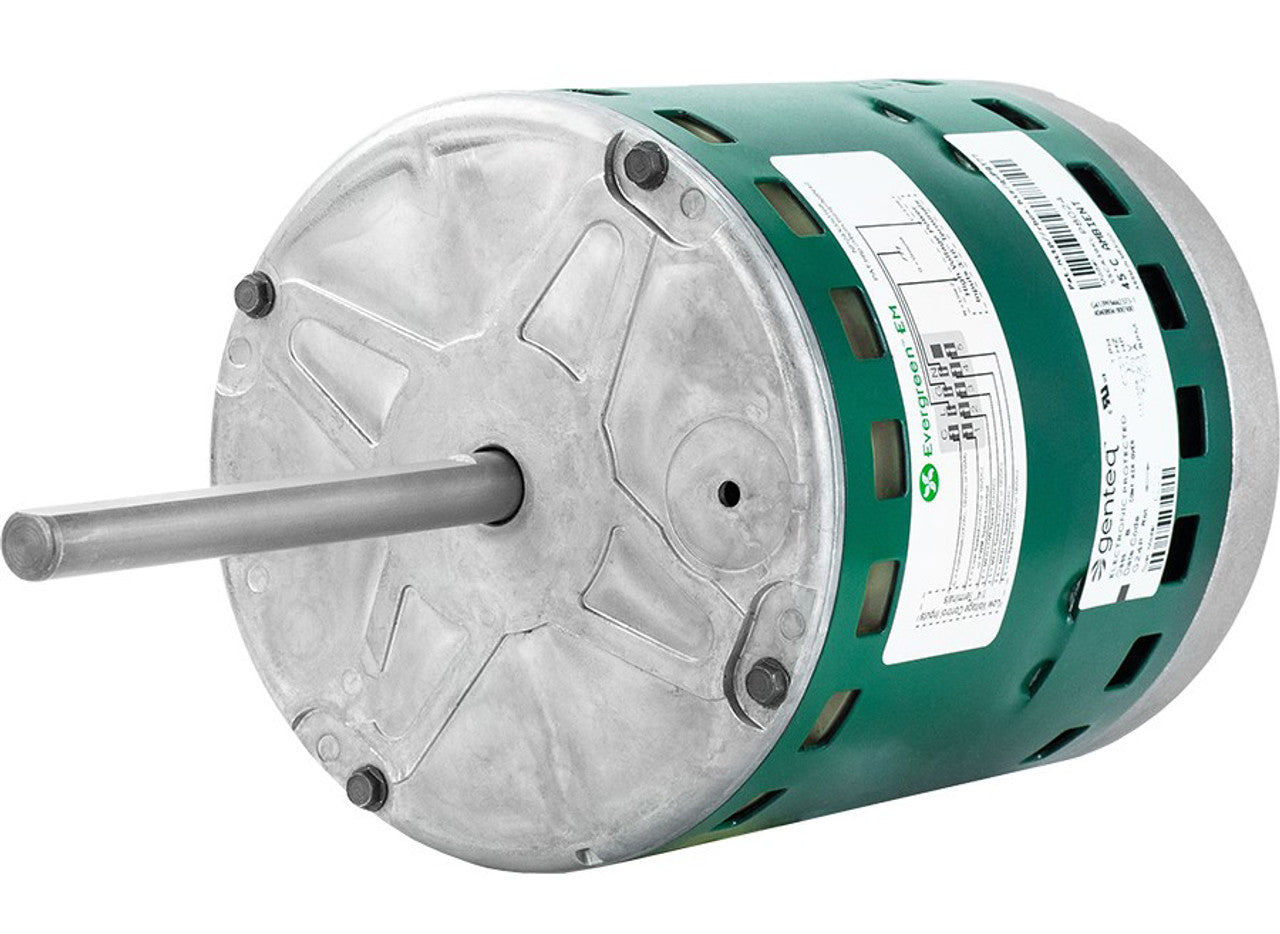

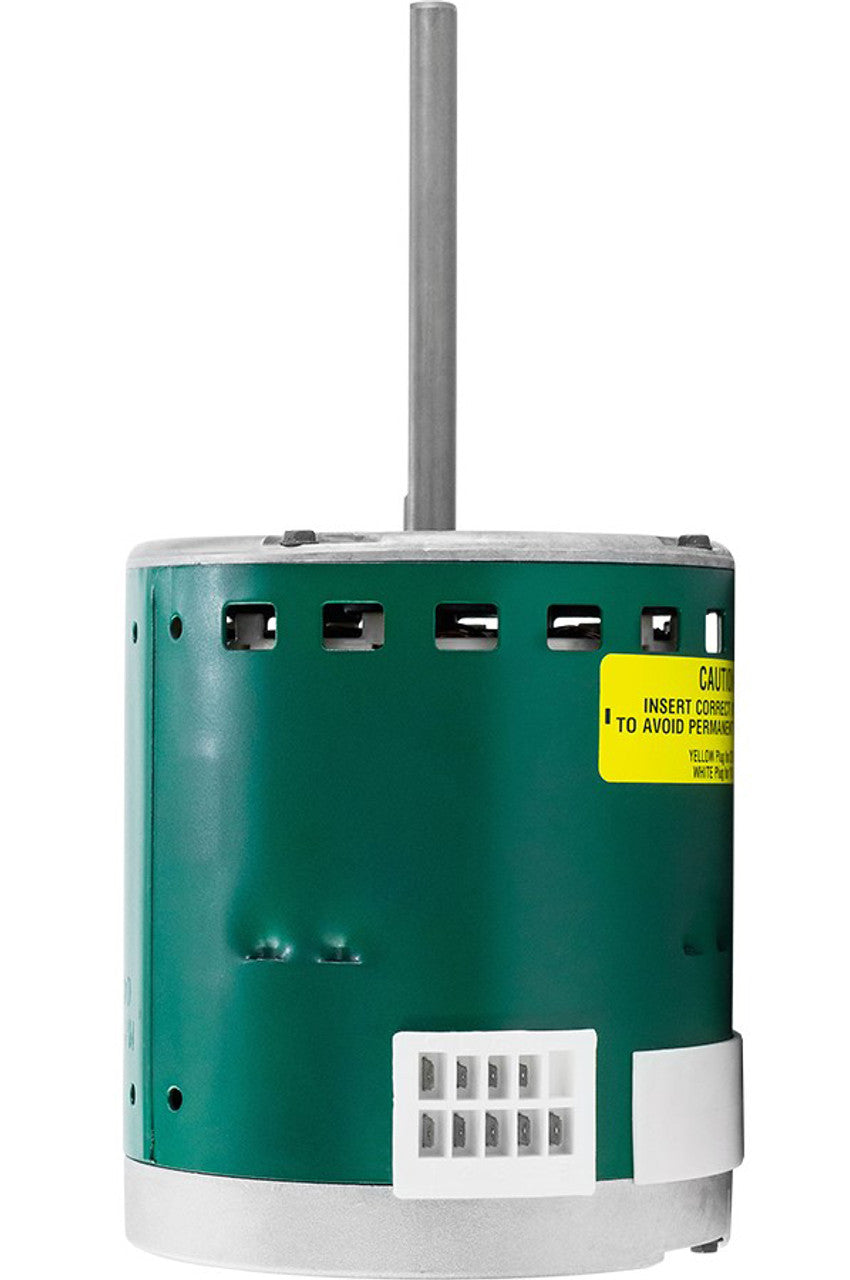

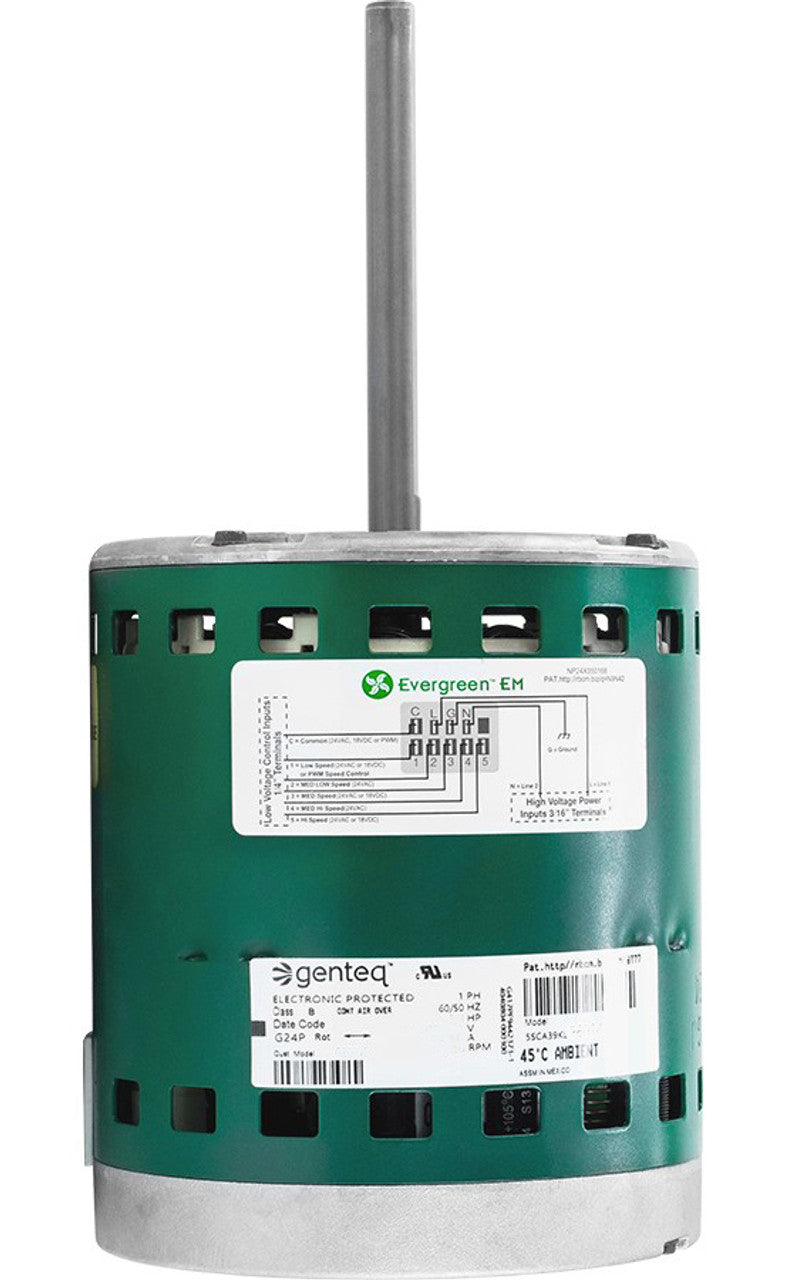

CENTURY 6205X EVERGREEN EM Fan and Blower Motor 1/2 HP 115/208-230 V

Product Description

The CENTURY 6205X EVERGREEN EM Fan and Blower Motor is a powerful, energy-efficient motor with a half horsepower rating. This motor operates at dual voltage, functioning at both one hundred fifteen and two hundred eight to two hundred thirty volts. Its rotation sensing technology allows precise control, featuring five constant torque settings that can be adjusted via twenty-four VAC inputs. Installation is straightforward due to its design, and its open air over enclosure ensures optimal performance.

• Includes dual voltage capability
• Pre-programmed for immediate use
• Electronically protected for safety

Product Highlights

This Evergreen series motor provides reliable operation and high efficiency, ideal for HVAC applications.

Product Information

Standard Information

• Phase: 1
• Output HP: 1/2 HP

Technical Specifications

• Voltage: 115/208-230 V
• Speed: 1050 RPM
• Service Factor: 1
• Frame: 48
• Enclosure: Open Air Over
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Frequency: 60/50 Hz
• Current: 6.4/4.1 A
• Duty: Continuous Air Over
• Insulation Class: B
• Number of Speeds: 1
• Electrical Type: Electronically Commutated Motor
• Poles: 10
• Rotation: Counterclockwise/Clockwise
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.91 inches
• Frame Length: 4.82 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 4.92 inches
