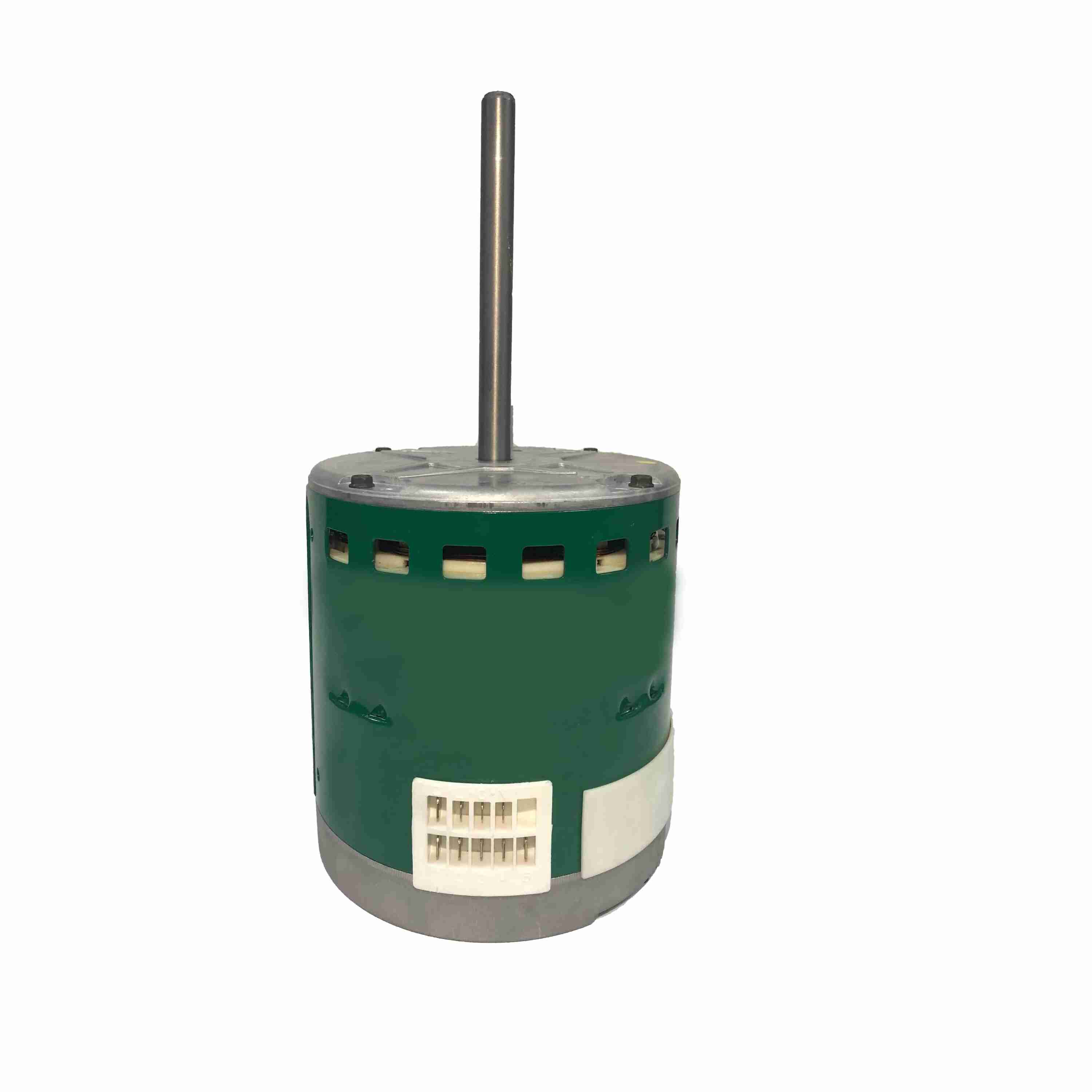

CENTURY 6203X Condenser Fan Motor 1/3HP 600-1200RPM

Product Description

The CENTURY 6203X condenser fan motor is built for replacing direct-drive blower motors in residential and light commercial equipment. This motor works well in indoor furnaces, air handlers, and packaged systems designed for standard ECM motors. The speed range of this motor is between six hundred to twelve hundred revolutions per minute.

• Replaces Century 6203E / 6103E
• Ideal for direct-drive applications in residential and light commercial systems
• Operates effectively at a speed range of 600-1200 RPM

Product Highlights

The 6203X is a reliable 1/3HP condenser fan motor, designed specifically for residential and light commercial applications.

Product Information

Standard Information

• Brand: CENTURY
• MPN: 6203X

Technical Specifications

• Phase: 1
• Output HP: 1/3 HP
• Output KW: 0.25 kW
• Voltage: 115/208-230 V
• Speed: 1050 RPM
• Service Factor: 1
• Frame: 48
• Enclosure: Open Air Over
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Frequency: 60/50 Hz
• Current: 4.1/2.8 A
• Duty: Continuous Air Over
• Insulation Class: B
• Number of Speeds: 1
• Electrical Type: Electronically Commutated Motor
• Poles: 10
• Rotation: Counterclockwise/Clockwise
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.66 inches
• Frame Length: 4.57 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 4.92 inches
