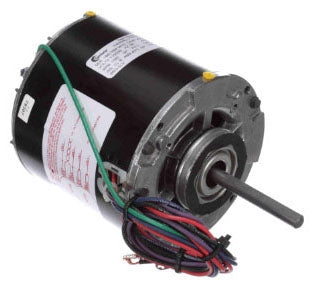

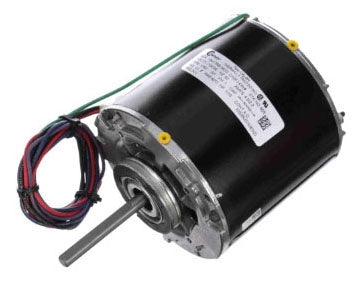

Regal Rexnord - Century Motors 608 1/10 HP 115/230VAC 60Hz 1-Phase Blower Motor

Product Description

The Regal Rexnord - Century Motors 608 is a refrigeration motor designed for use in various HVAC applications. This unit has a power rating of 1/10 HP and uses a voltage supply of 115/230 VAC at 60 Hz. The motor operates at a speed of 1050 RPM and features a reversible capability, which allows for flexible installation options.

• 1-Speed motor with a flat shaft design
• Constructed with a robust NEMA 42 rolled steel frame
• Includes a resilient ring mount for effective vibration absorption

Product Highlights

The 608 model is suitable for refrigeration, unit heaters, and space heaters. Its compact design and durable components make it ideal for a variety of demanding environments.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• MPN: 608

Technical Specifications

• Power Rating: 1/10 HP
• Voltage Rating: 115/230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 4.6/2.3 Amp
• Number of Speeds: 1
• Speed Rating: 1050 RPM
• Reversible: Yes
• Service Factor: 1
• NEMA Frame Size: 42
• Insulation Class: A
• Frame Material: Rolled Steel
• Mounting: Resilient Ring
• Weight: 8 Pound
