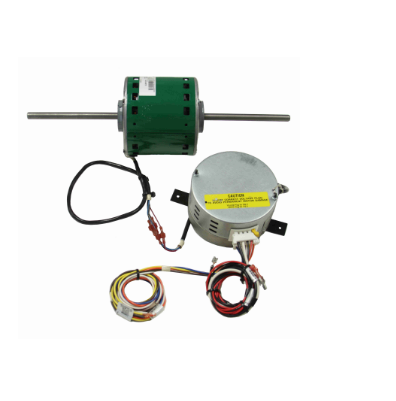

CENTURY 6007DS Double Shafted ECM Replacement Fan Motor 3/4 HP Max

Product Description

The Century Motors 6007DS is a double shafted ECM replacement fan motor with a maximum power of three-fourths horsepower. This motor is suitable for a range of applications including HVAC systems and ventilation setups. The motor features a durable construction and is designed to meet the demands of contractors, service technicians, and DIY projects.

• Double Shafted for versatile installation
• Compatible with ECM applications
• Maximum output of 3/4 HP

Product Highlights

Product Information

Standard Information

• Brand: CENTURY
• MPN: 6007DS

Technical Specifications

• UPC: 818508028873
• Phase: 1
• Output HP: 3/4 Max HP
• Voltage: 115/230 V
• Speed: 1070 rpm
• Service Factor: 1
• Frame: 48
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60/50 Hz
• Current: 11.0/6.7 A
• Duty: Continuous Air Over
• Insulation Class: B
• Number of Speeds: 5
• Electrical Type: Electronically Commutated Motor
• Poles: 12
• Rotation: Counterclockwise/Clockwise
• Mounting: Resilient Rings
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Overall Length: 19.63 inches
• Frame Length: 4.57 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6.75 inches
• Packaged Length: 22.00 inches
• Packaged Width: 7.70 inches
• Packaged Height: 7.25 inches
