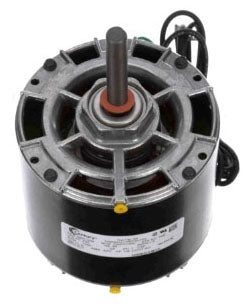

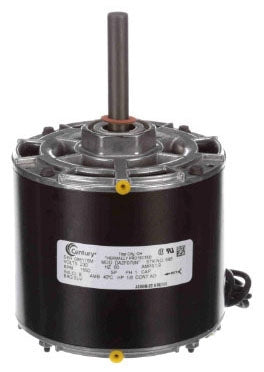

Century 598 1/8 HP 230 VAC 60 Hz 1-Phase Blower Motor

Product Description

The Century Motors 598 is a 1/8 HP blower motor designed for efficient operation in HVAC applications. It runs on 230 VAC with a frequency of sixty hertz and operates with a current of 1.9 amps. This motor features a four-pole design and has a speed rating of 1550 RPM, providing reliable performance for various air-moving needs.

• 1-Speed Operation
• Flat Shaft Orientation
• Automatic Thermal Protection

Product Highlights

This motor is suitable for use in furnaces, attic ventilators, and air handlers. It is equipped with class B insulation and has a NEMA 42Y rolled steel frame for enhanced durability.

Product Information

Standard Information

• Manufacturer: Century Motors
• Weight: 9 pounds

Technical Specifications

• Power Rating: 1/8 HP
• Voltage Rating: 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 1.9 Amp
• Speed Rating: 1550 RPM
• Number of Speeds: 1
• NEMA Frame Size: 42Y
• Insulation Class: B
• Frame Material: Rolled Steel
• Mounting Type: Round Belly Band
• Application: Furnace Blower, Attic Ventilator, Air Handler, Fan Coil Motor
• Approval: UL, CSA
• Rotation Direction: Counter Clockwise Lead End
