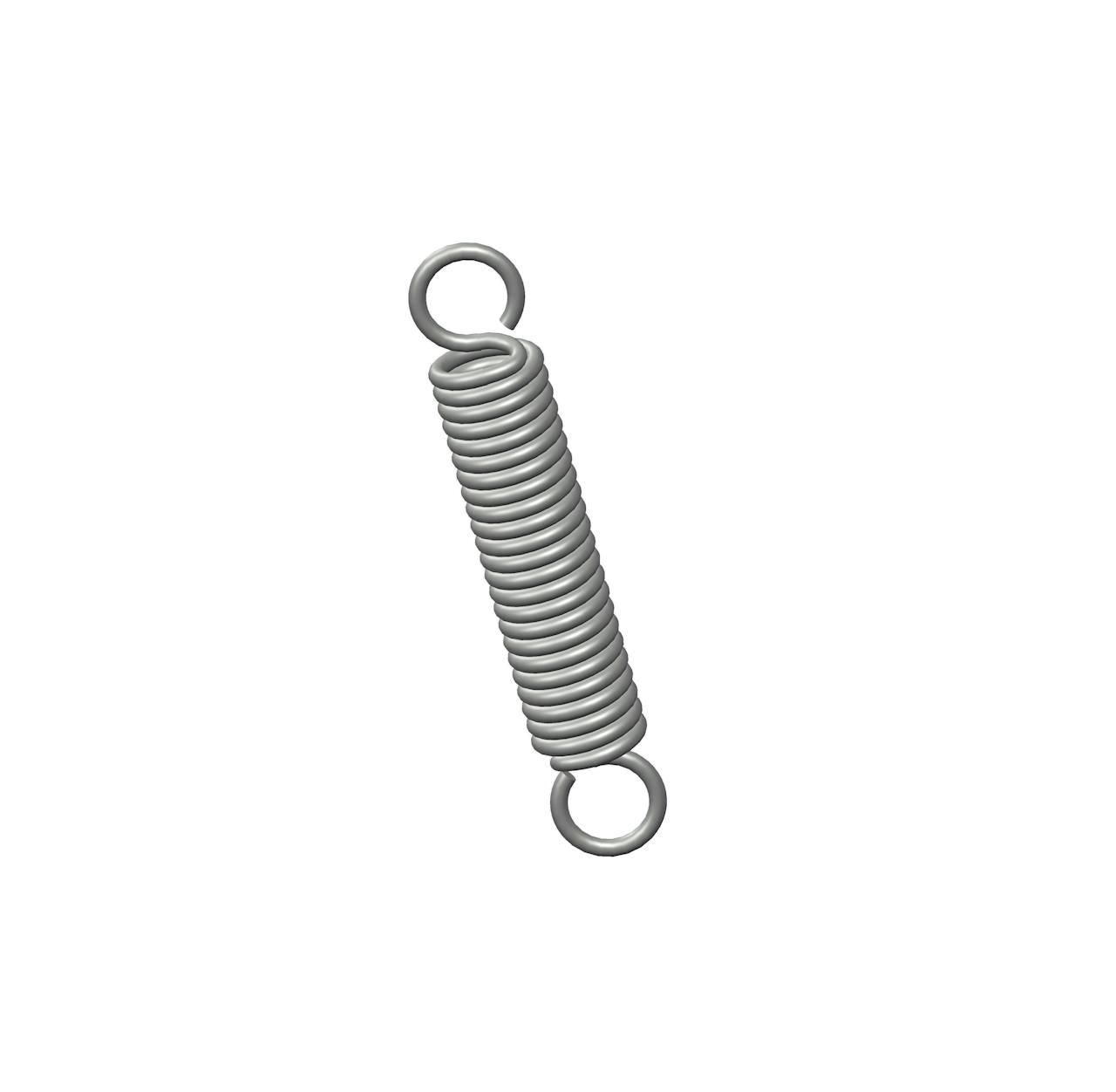

CENTURY 5863 Spring Steel Extension Spring 1.97 Inches

Product Description

The CENTURY 5863 is a standard extension spring crafted from durable spring steel. The zinc finish offers corrosion resistance. It has a wire diameter of zero point zero fifty-five inches and an outside diameter of zero point three fifty-nine inches. The free length measures one point nine seven inches. The spring features an initial tension of four pounds and a spring rate of sixteen pounds per inch. It can deflect up to zero point seventy-six inches with a maximum load of sixteen pounds-force.

• Full loop design
• Suitable for various applications
• Manufactured from high-quality materials

Product Highlights

This extension spring serves various industrial and mechanical purposes, effectively providing the necessary tension and performance.

Product Information

Standard Information

• Brand: Century Spring
• Part Type: Standard

Technical Specifications

• Initial Tension: 4 lb
• Length: 1.97 inches
• Material: Spring Steel
• Outside Diameter: 0.359 inches
• Rate: 16 lbs/inch
• Suggested Max Deflection: 0.76 inches
• Suggested Max Load: 16 lbf
• Wire Diameter: 0.055 inches
