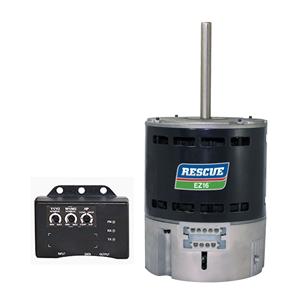

CENTURY 5862 Ez16 Ecm Repl Motor 1/2Hp 115/230

Product Description

The CENTURY 5862 Ez16 ECM replacement motor is designed for use in furnaces and air handlers. This motor has a half horsepower and operates on both 115 and 230 volts. It provides a variable speed function with a 16-pin connection. Users can adjust settings for voltage, horsepower, and airflow through the EZ Interface.

• Universal ECM replacement for many OEM models
• Field tunable with EZI for easy setup
• Includes built-in surge protection for reliability

Product Highlights

Product Information

Standard Information

• Application: Motor Blower 16-Pin ECM
• Horse Power: 1/2

Technical Specifications

• High Speed (RPM): 1075
• Voltage Data (Volts-Phase-Hz): 115/208-230/1/50-60
• Speeds: 1
• Rotation: Reversible
• Run Capacitor: ECM Universal
• AMP: 6.4/4.0-3.8
• Shaft Dimension: 1/2 inches x 5 inches
• Body Dimension: 5.6 inches DIA x 6.2 inches
• Frame Size: 48
• Bearing Type: Ball
• Motor Enclosure: OAO
• Mounting: Bracket
• OEM: Universal
• Description: 86T
