CENTURY 5542ET US Motors - Nidec - Emerson Motor Blower 1/8 HP

Product Description

The CENTURY 5542ET US Motors is a single-phase motor with a power of one eighth horsepower, operating at a speed of 1075 RPM. This motor is designed for use in both commercial and residential air handlers and furnaces. It features an open air over enclosure and employs a direct drive system, making it ideal for a variety of applications.

• Single-phase operation
• Speed of 1075 RPM
• Suitable for air handlers and furnaces

Product Highlights

Reliable performance for air handling and furnace applications.

Product Information

Standard Information

• Brand: US Motors
• Manufacturer: US Motors

Technical Specifications

• Speed: 1075 RPM
• Voltage Rating: 115/208 to 230 VAC
• Horsepower: 0.13 HP
• Product Group: Blower Motors
• Application: For commercial and residential air handlers and furnaces
• Drive Type: Direct
• Motor Enclosure Type: Open Air Over
• Number Of Speeds: 1

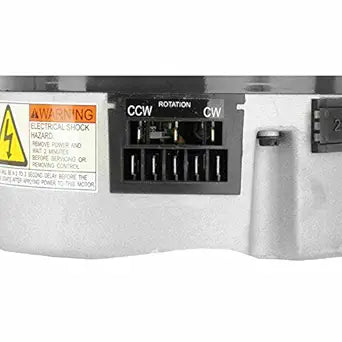

• Rotation Direction: Counter-Clockwise
• Amperage Rating: 8.1/6.1 to 5.2/8.9/5.7 to 5.1 A
• Frequency: 60 Hz
• Phase: 1
• Shaft Size: 1/2 in Dia x 4-1/2 in L
• Insulation Class: B
• Bearing Type: Ball
• Frame Size: 48Y
• Mounting Details: Belly Band
• Temperature Rating: 40 deg C
