CENTROTHERM ISLPT0202 InnoFlue Low Profile Wall Termination 2

Product Description

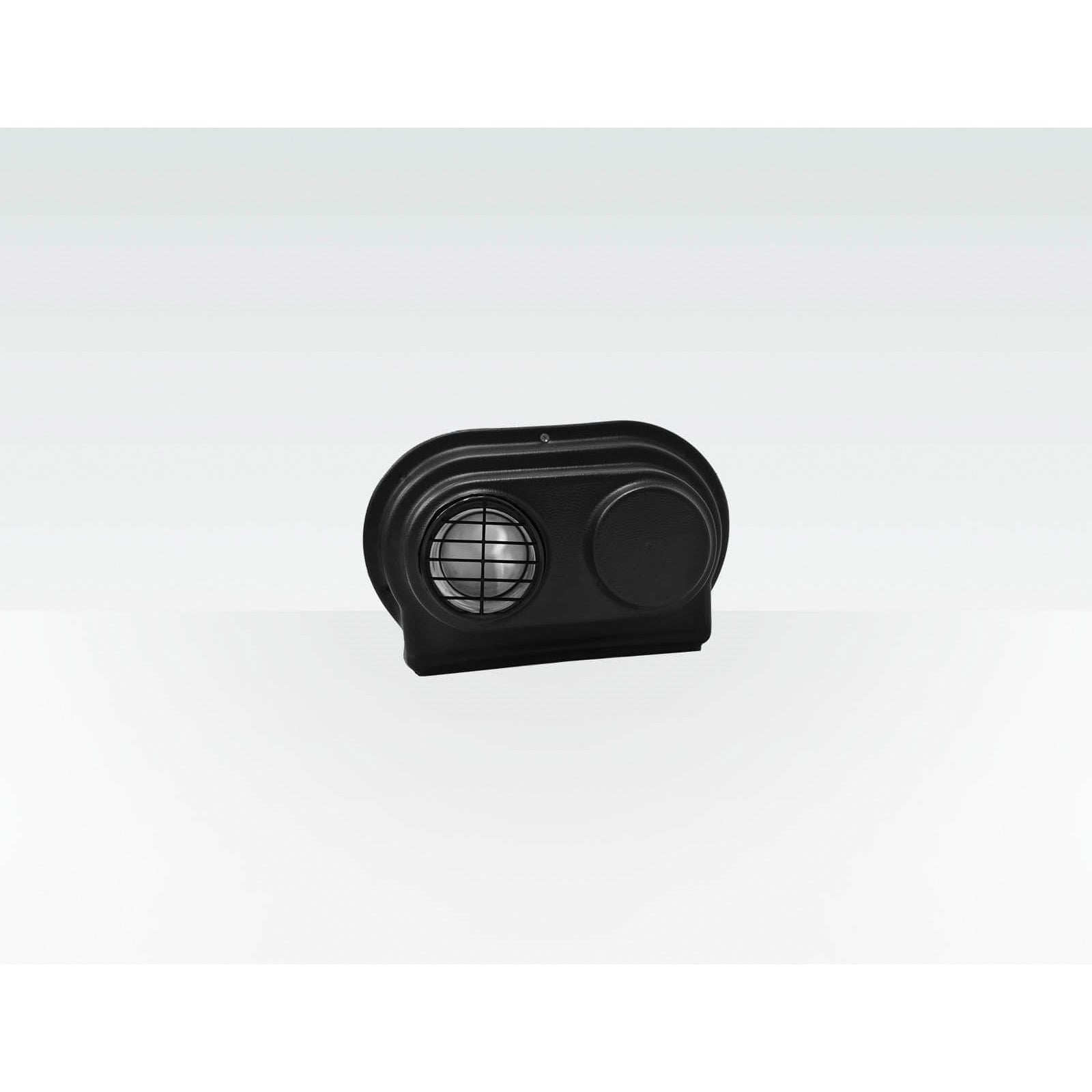

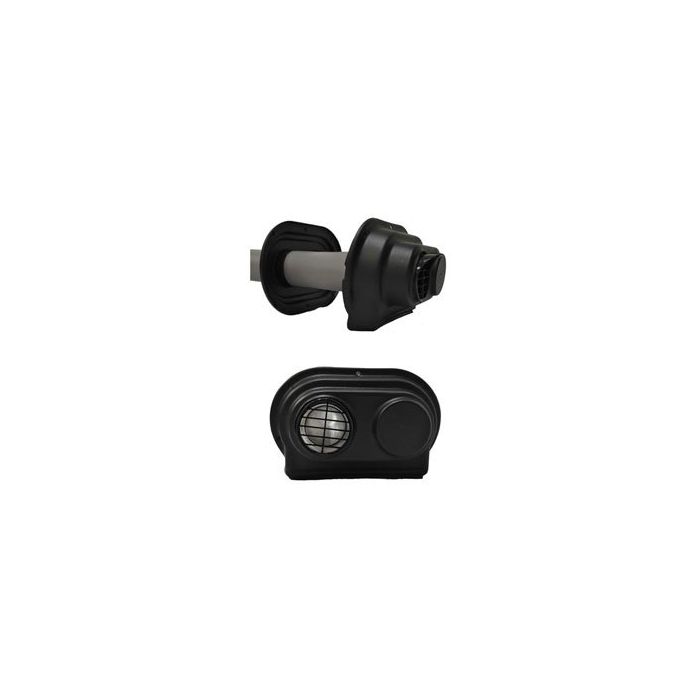

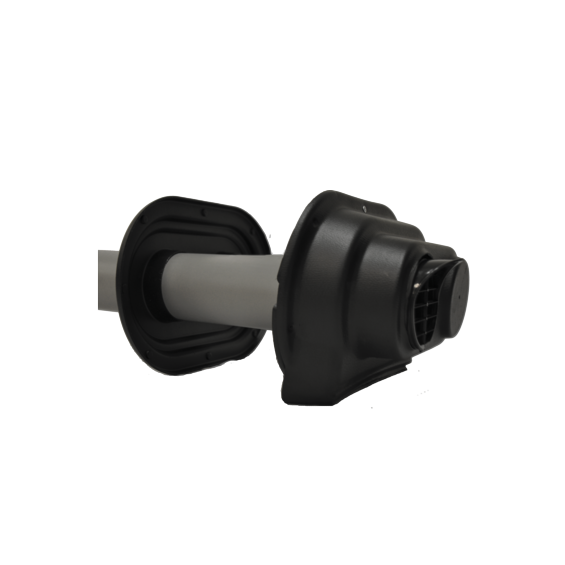

The CENTROTHERM InnoFlue ISLPT0202 is a low-profile wall termination built for horizontal exhaust systems. This two-inch vent system component is made from polypropylene and offers a reliable solution for air intake and exhaust.

• Evaluated to UL1738 and ULCS636 standards
• Includes an interior wall plate and bird screen
• Can be painted to suit exterior colors

Product Highlights

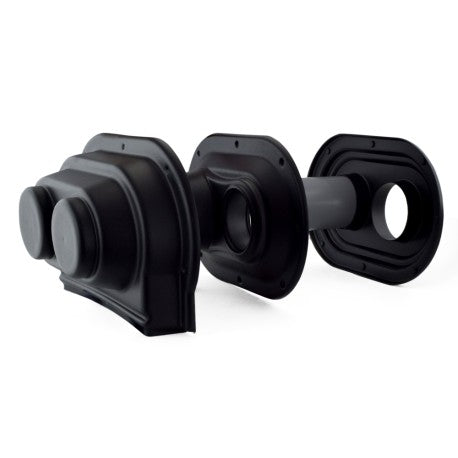

This product is intended for use with two-inch InnoFlue single-wall vent systems. It includes both inner and outer plates, along with bird protection. The design accommodates extensions or redirection of exhaust with compatible vent lengths and elbows.

Product Information

Standard Information

• Brand: CENTROTHERM
• MPN: ISLPT0202

Technical Specifications

• Part Number: 250407003180
• Trade Name: InnoFlue
• Nominal Diameter: 2 inches
• Material: Polypropylene
• System Type: Single wall
• Overall Height: 9.1 inches
• Overall Width: 13.0 inches
• Net Weight: 0.946 kg / 2.1 lbs
• Bird Protection: Yes
• Diameter of Air Inlet Pipe: 60 mm
• Diameter of Flue Pipe: 60 mm / 2 inches
• Temperature Resistance (Max.): 120 °C
• Certifications (US/CAN): UL 1738 - ICC-ES / ULC S636 - ICC-ES
