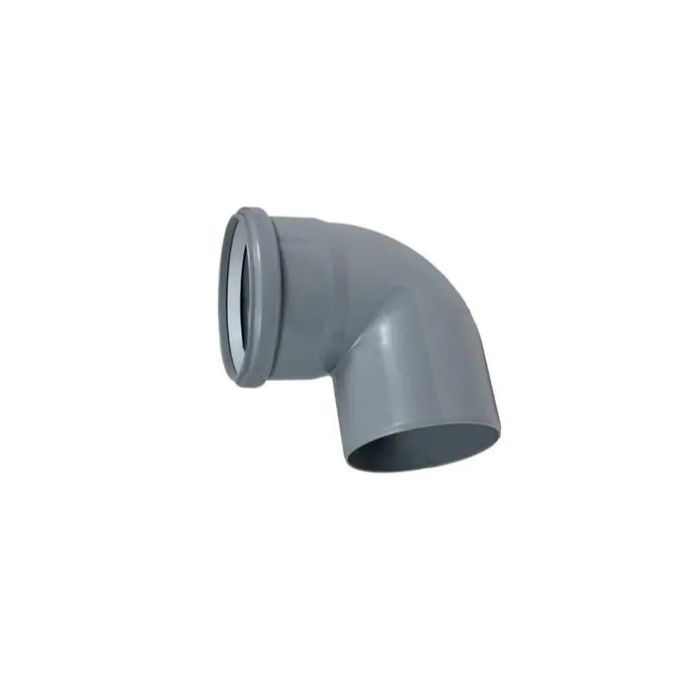

Centrotherm ISELL0287 InnoFlue 2 87 Degree Elbow Replacement MPN

Product Description

The Centrotherm ISELL0287 is an InnoFlue 2 elbow designed with an 87-degree angle for venting systems. Made from polypropylene, this elbow is compatible with category II and IV furnaces, water heaters, and boilers. It allows for directional changes in vent systems while ensuring an airtight seal thanks to its integrated gasket system.

• Constructed from environmentally friendly polypropylene
• Integrated gasket system provides an airtight seal
• Compatible with natural gas, propane, and fuel-oil appliances

Product Highlights

The Centrotherm ISELL0287 is a reliable option for safe venting in various heating systems.

Product Information

Standard Information

• Manufacturer: Centrotherm
• Material: Polypropylene

Technical Specifications

• MPN: ISELL0287
• Nominal Diameter: 2 inches
• Angle: 87 degrees
• Maximum Outer Diameter: 3.0 inches
• Effective Length: 4.8 inches
• Length: 6.4 inches
• Width: 6.3 inches
• Height: 2.9 inches
• Weight: 0.2 lbs
• Temperature Resistance (Max.): 120 °C
• Certifications: UL 1738 - ICC-ES / ULC S636 - ICC-ES
