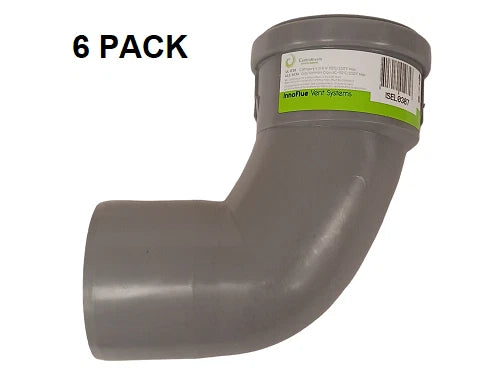

Centrotherm ISEL0387 InnoFlue 3 x 87 Degree Elbow

Product Description

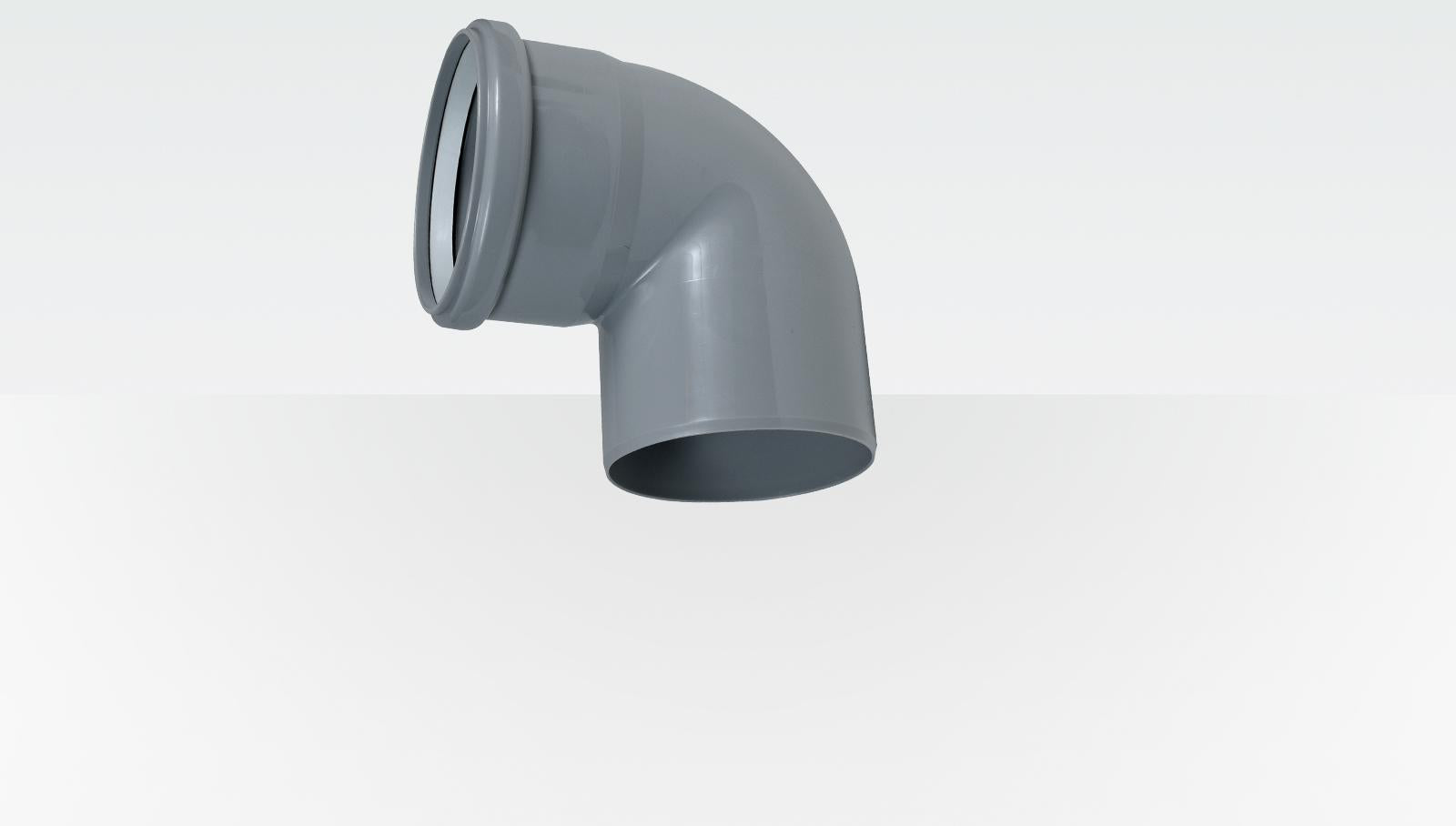

The Centrotherm ISEL0387 InnoFlue elbow is a component used in venting systems that allows for an 87-degree directional change in the vent pipe. Made from PolyPropylene (PPs), this elbow incorporates an integrated EPDM gasket to ensure a tight, airtight seal upon installation.

• Compatible with 3 inch Innoflue single wall vent pipes
• Designed for both indoor and outdoor applications
• Meets UL1738 and ULCS636 standards

Product Highlights

This elbow enhances the efficiency of venting systems while ensuring safety and reliability.

Product Information

Standard Information

• Brand: Centrotherm
• Model: InnoFlue

Technical Specifications

• MPN: ISEL0387
• Connection Size: 3 inches
• Elbow Angle: 87 degrees
• Material: PPs
• Diameter Flue Pipe: 80 mm / 3 inches
• Length: 156.21 mm / 6.1 inches
• Height: 95.25 mm / 3.7 inches
• Width: 154.94 mm / 6.1 inches
• Weight: 0.13 kg / 0.3 lbs
• Temperature Resistance (Max.): 120 °C / 248 °F
• Certifications: UL 1738 - ICC-ES / ULC S636 - ICC-ES
