CENTROTHERM ISEL0345 InnoFlue 3 45 Elbow

Product Description

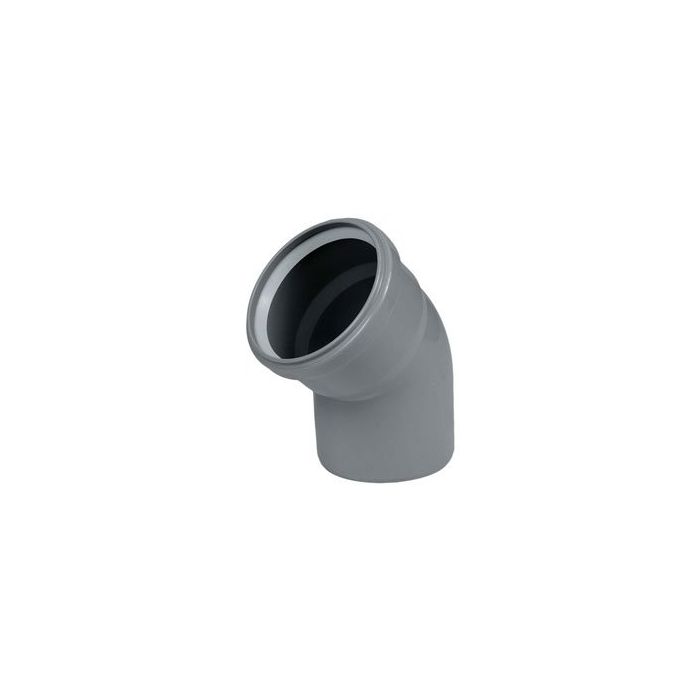

The CENTROTHERM InnoFlue ISEL0345 45 degree elbow is made for venting systems. It allows for directional changes and offsets. This product features an EPDM gasket for an airtight connection, eliminating the need for adhesives. The elbow is manufactured from PPs material, making it suitable for outdoor use.

• Features an integrated EPDM gasket for an airtight seal.
• Designed for single wall systems.
• Evaluated to UL1738 and ULCS636 standards.

Product Highlights

Reliable for maintaining airflow in vent systems.

Product Information

Standard Information

• Manufacturer: Centrotherm
• MPN: ISEL0345

Technical Specifications

• GTIN: 0810017290130
• Trade name: InnoFlue
• Part number: 250405101570
• Diameter flue pipe: 80 mm / 3 inch
• Angle: 45 degrees
• Material: PPs
• System type: Single wall
• Length gross: 181.61 mm / 7.1 inch
• Height: 95.25 mm / 3.7 inch
• Width: 140.97 mm / 5.5 inch
• Net weight: 0.12 kg / 0.3 lbs
• Temperature resistance (max.): 120 degrees Celsius
• Certificates (US/CAN): UL 1738 - ICC-ES / ULC S636 - ICC-ES
