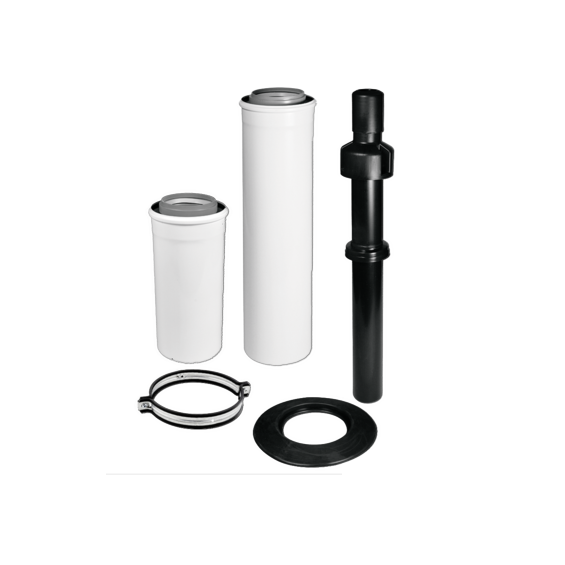

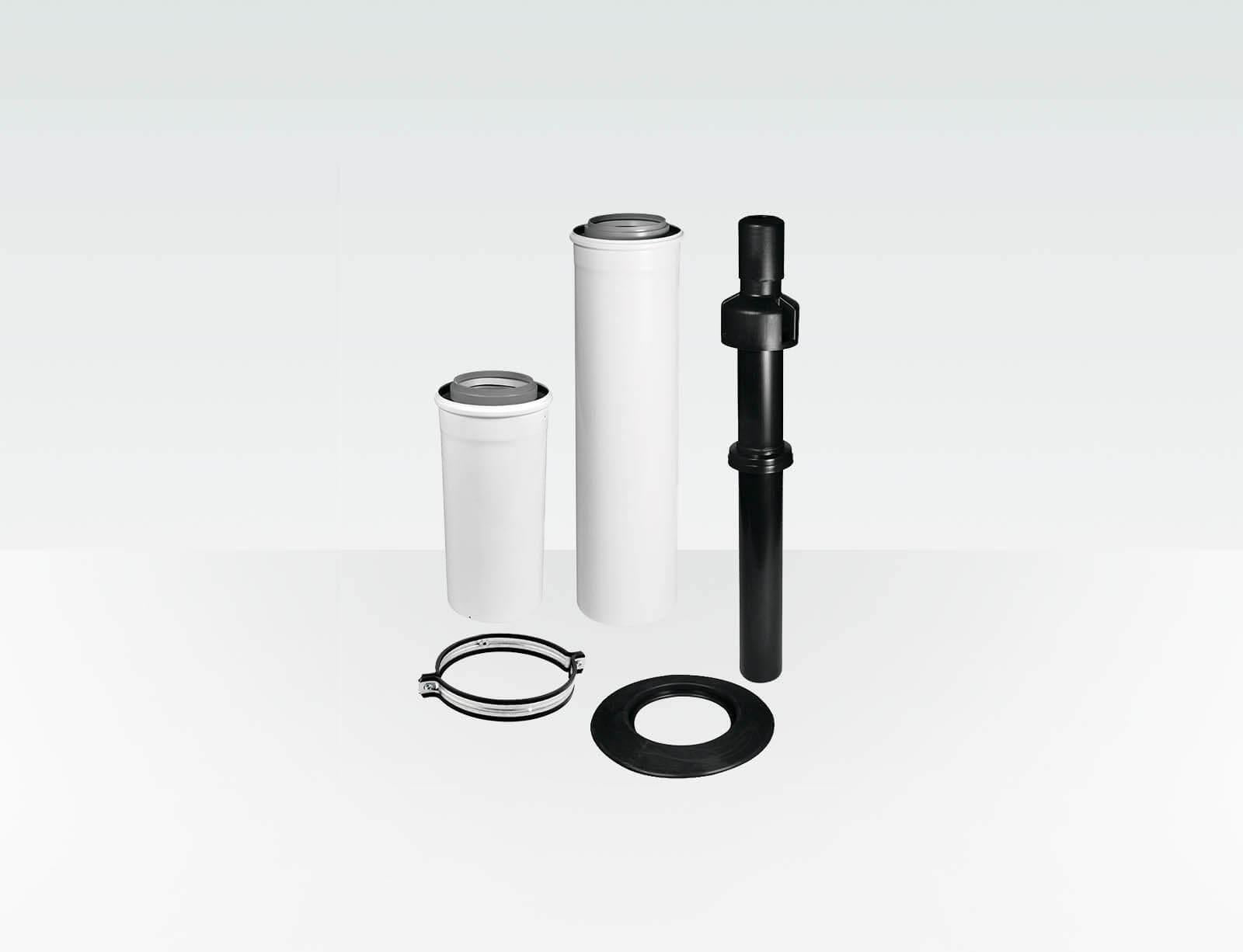

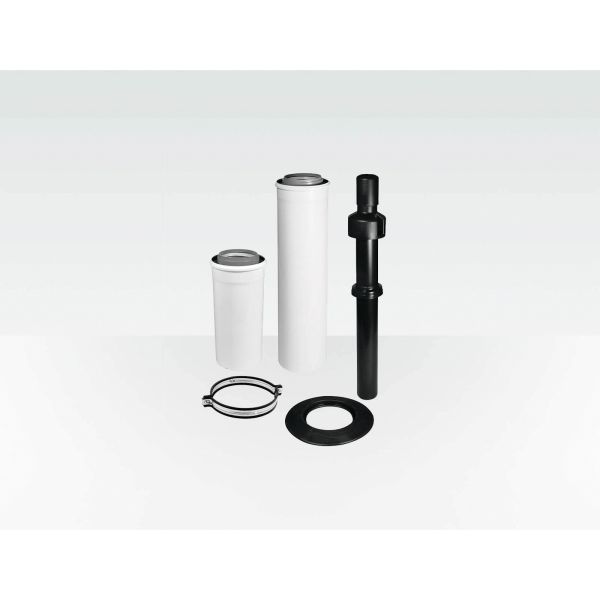

CENTROTHERM ICVKV35 InnoFlue 3/5 Concentric Vent Kit Vertical

Product Description

The CENTROTHERM InnoFlue ICVKV35 is a concentric vertical vent kit designed for efficient venting of combustion air and exhaust. It provides a single pipe vent system for installation through the roof. This kit is essential for vertical venting applications and includes necessary components for proper installation.

• Features a powder white exterior coating.
• Constructed from polypropylene (PPs) and galvanized steel.
• Suitable for various vertical venting configurations.

Product Highlights

The ICVKV35 integrates both air intake and exhaust in one streamlined system, ensuring compliance with safety standards.

Product Information

Standard Information

• Product Name: 3/5 Concentric Vent Kit Vertical
• Trade Name: InnoFlue

Technical Specifications

• Part Number: 250411303470
• GTIN: 0815010016121
• System Type: Concentric
• Material (Flue Pipe): Polypropylene
• Material (Air Inlet Pipe): Galvanized
• Flue Pipe Diameter: 80 mm / 3 inches
• Air Inlet Pipe Diameter: 125 mm
• Height: 1284 mm / 50.6 inches
• Width: 595 mm / 23.4 inches
• Length: 335 mm / 13.2 inches
• Net Weight: 8.954 kg / 19.7 lbs
• Gross Weight: 8.954 kg / 19.7 lbs
• Temperature Resistance (Max): 120 °C
• Certifications (US/CAN): UL 1738 - ICC-ES / ULC S636 - ICC-ES
• Diameter Options: 3 or 5 inches
• Type: Vertical
• Domestic/Import: Domestic
• Product Family: Concentric
• Volume: 14910.75
• Depth: 13.5
