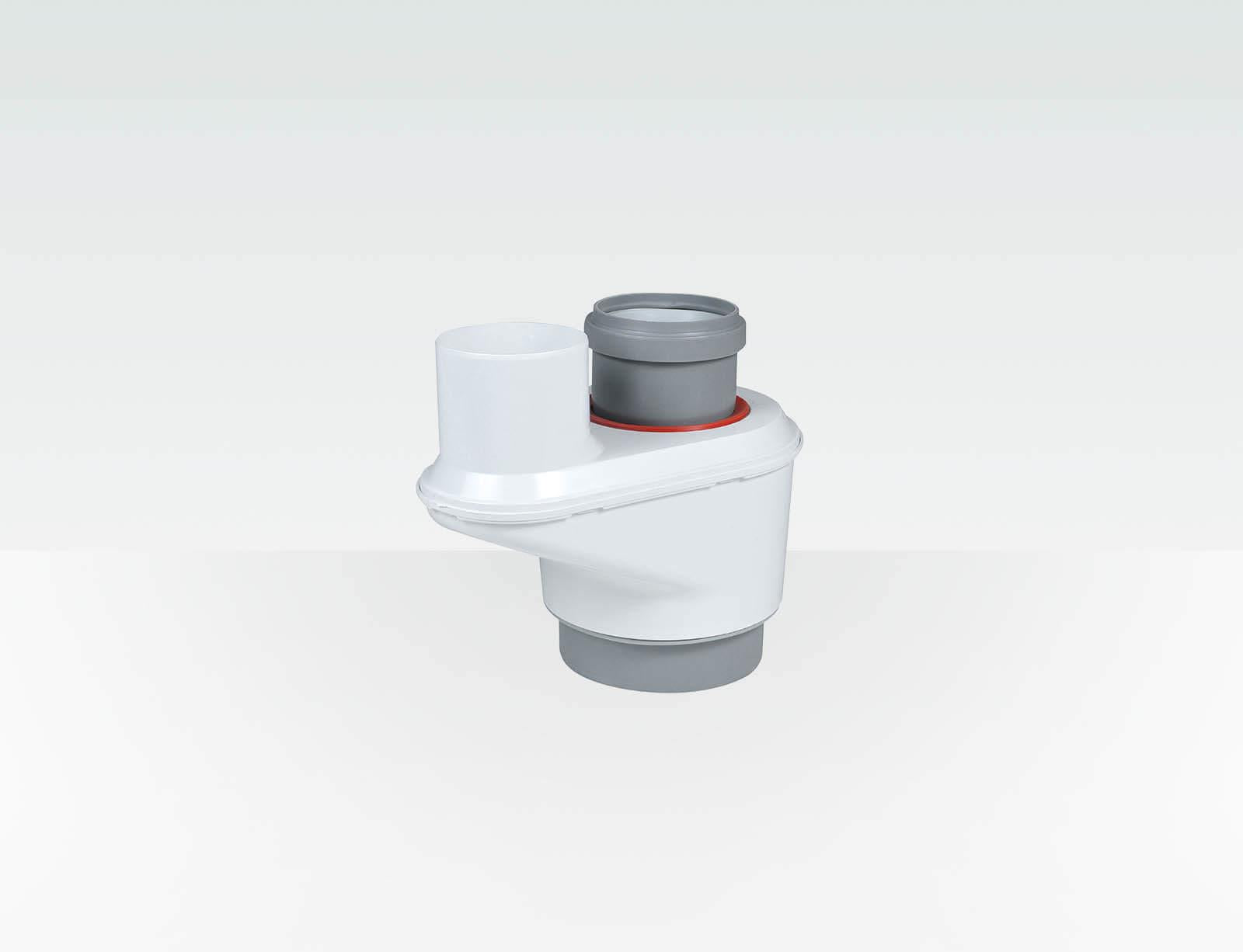

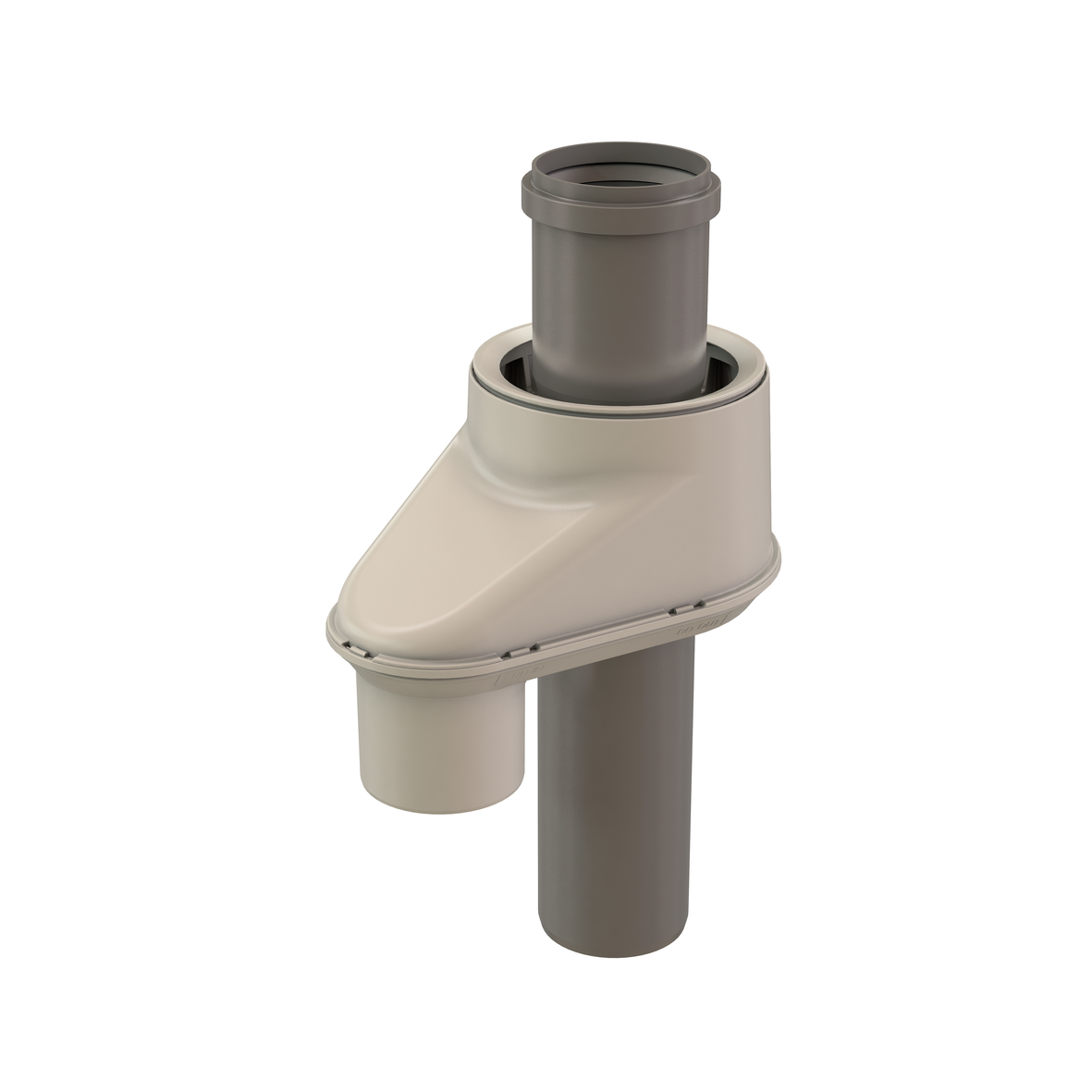

Centrotherm ICTC0335 adapter 3 inch/5 inch twin pipe to concentric

Product Description

The CENTROTHERM ICTC0335 adapter facilitates a seamless transition from InnoFlue Single Wall to InnoFlue Concentric systems. This versatile adaptor, rated to 230°F (110°C), is designed to manage various venting requirements and obstacles. Constructed from PPs-UV for both outer and inner components, it incorporates flue gas termination and combustion air intake. It allows for the transition from two 3-inch single wall pipes to a 3-inch/5-inch InnoFlue concentric system.

• Seamlessly transitions between InnoFlue Single Wall and InnoFlue Concentric components.
• Evaluated to UL1738 and ULC S636 by ICC.
• Rated to 230°F (110°C).

Product Highlights

Facilitates transition from twin 3-inch single wall pipes to 3-inch/5-inch concentric systems, ensuring efficient flue gas termination and air intake.

Product Information

Standard Information

• Brand: CENTROTHERM
• Manufacturer Part Number: ICTC0335
• Country of Origin: China

Technical Specifications

• MPN: ICTC0335
• Brand: Centrotherm
• Inventory SKU: 452970
• Country of Origin: China
• Trade Name: InnoFlue
• GTIN: 0815010010372
• Part Number: 250408500160
• Flue Pipe Material: PPs
• Number of Connections: 4
• System Type: Concentric
• Air Inlet Pipe Material: PPs
• Air Inlet Pipe Diameter: 125 mm / 5 inch
• Flue Pipe Diameter: 80 mm / 3 inch
• Max Temperature Resistance: 120 °C
• Certifications: UL 1738 – ICC-ES / ULC S636 – ICC-ES
• Catalog Number: ICTC0335
• Product Family: Concentric
