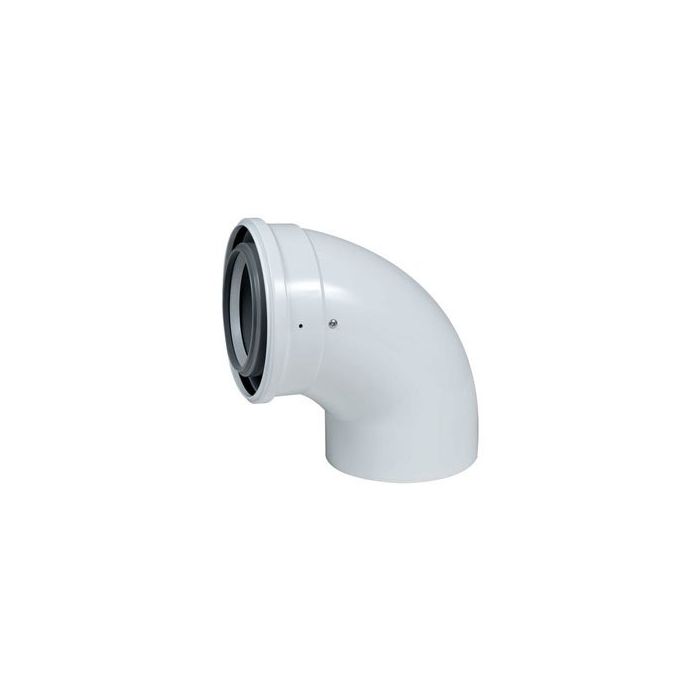

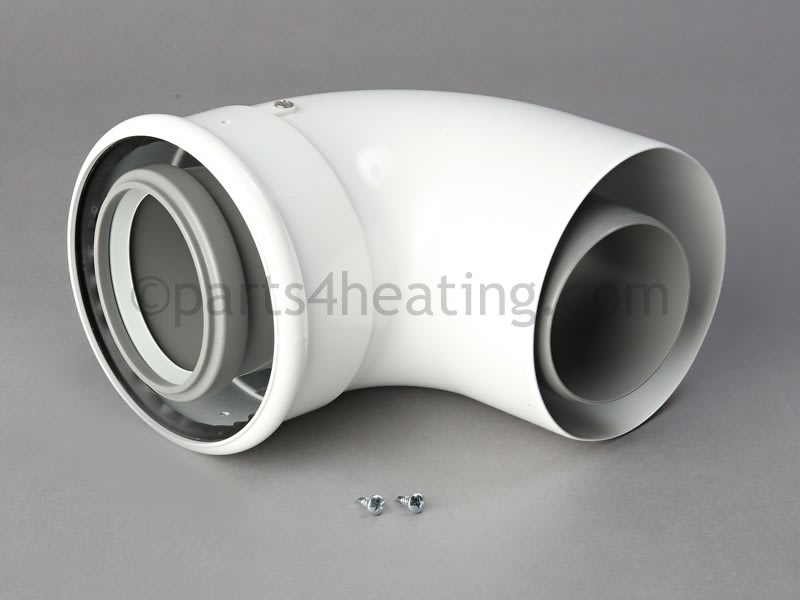

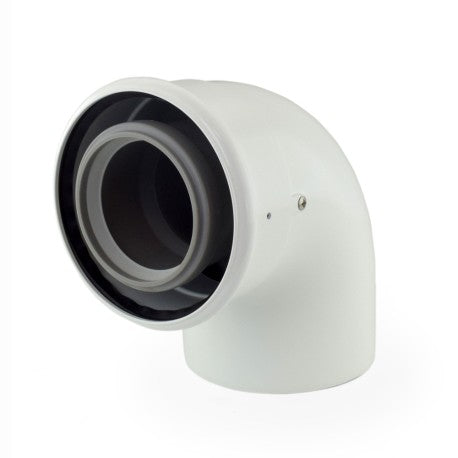

Centrotherm ICEL3587 Concentric PPS/Aluminum Elbow

Product Description

The Centrotherm ICEL3587 is a concentric elbow designed for vent systems. This product integrates flue exhaust and air intake into a single effective unit. Constructed from polypropylene for the flue pipe and aluminum for the air inlet, the elbow is capable of facilitating changes in vent direction. It is suitable for both condensing and non-condensing appliances with flue temperatures below two hundred forty-eight degrees Fahrenheit.

• Integrated design reduces the number of components and wall/roof penetrations.
• Requires no primer or glue for installation.
• Evaluated to UL1738 and ULCS636 by ICC.

Product Highlights

The ICEL3587 offers a streamlined approach to vent setups, minimizing the complexity of installation and ensuring effective operation.

Product Information

Standard Information

• Manufacturer: Centrotherm
• MPN: ICEL3587

Technical Specifications

• System Type: Concentric
• Elbow Angle: Eighty-seven degrees
• Flue Pipe Diameter: Eighty millimeters / three inches
• Air Inlet Pipe Diameter: One hundred twenty-five millimeters / five inches
• Material Flue Pipe: PPS
• Material Air Inlet Pipe: Galvanized
• Net Weight: Zero point seven seven kilograms / one point seven pounds
• Gross Weight: Zero point nine seven five kilograms / two point one pounds
• Length: Two hundred four point forty-seven millimeters / eight inches
• Width: Two hundred one point ninety-three millimeters / seven point nine inches
• Height: One hundred forty point ninety-seven millimeters / five point five inches
• Temperature Resistance (max.): One hundred twenty degrees Celsius
• Certifications (US/CAN): UL 1738 - ICC-ES / ULC S636 - ICC-ES
