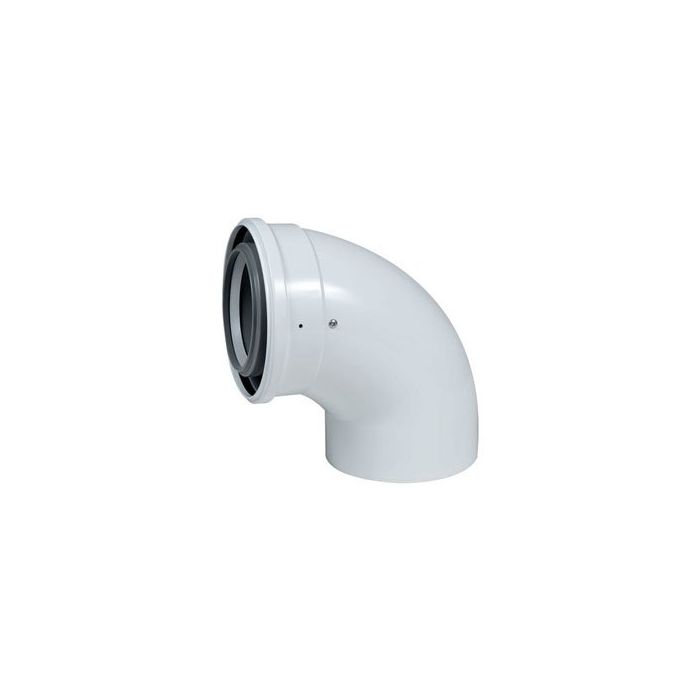

CENTROTHERM ICEL2487 Concentric Elbow 87 Degree

Product Description

The CENTROTHERM InnoFlue ICEL2487 is a concentric elbow for InnoFlue polypropylene vent systems. It enables direction changes and offsets in vent systems. Made from aluminum and polypropylene, it is designed for natural gas, propane, and fuel-oil appliances. The elbow remains effective for flue temperatures up to one hundred twenty degrees Celsius.

• Designed for use with InnoFlue systems
• Constructed from aluminum and polypropylene
• Works with 2 or 4-inch ID vent pipes

Product Highlights

Suitable for appliances requiring efficient venting solutions, this elbow features an eighty-seven degree angle for adaptable installations.

Product Information

Standard Information

• Brand: CENTROTHERM
• MPN: ICEL2487

Technical Specifications

• Angle: 87 degrees
• Material: Aluminum/Polypropylene
• Diameter air inlet pipe: 100 mm / 4 inches
• Diameter flue pipe: 60 mm / 2 inches
• Temperature resistance (max): 120 °C
• Weight: 1.1 lbs
• Length: 7.1 inches
• Height: 4.5 inches
• Width: 6.5 inches
