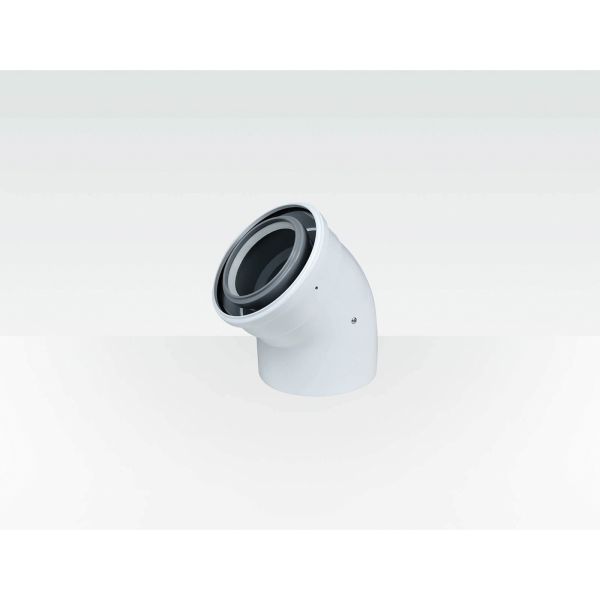

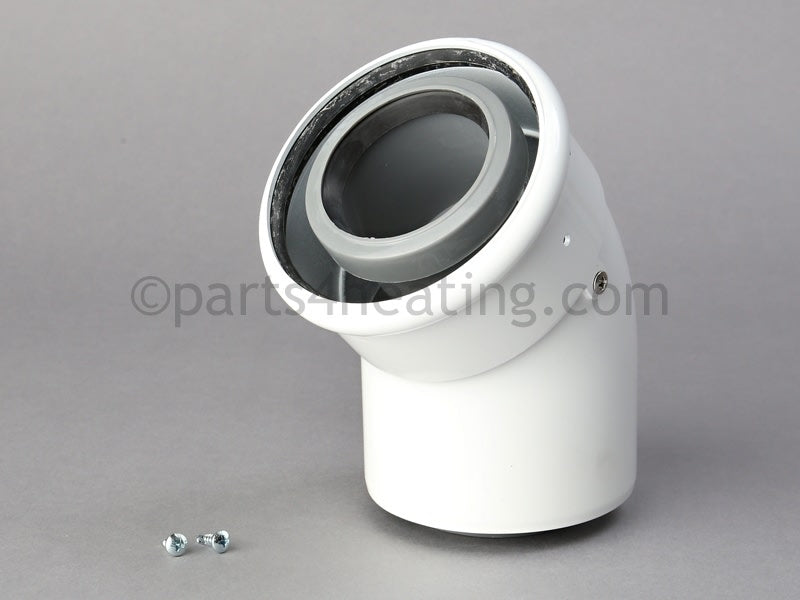

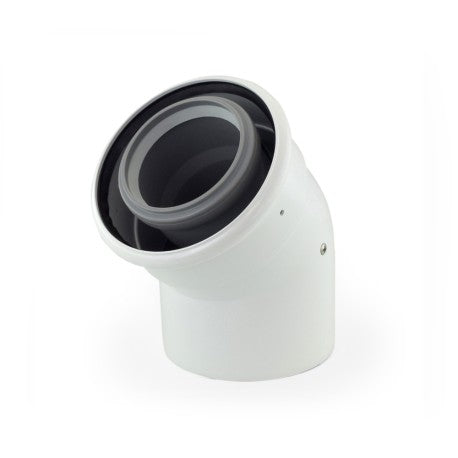

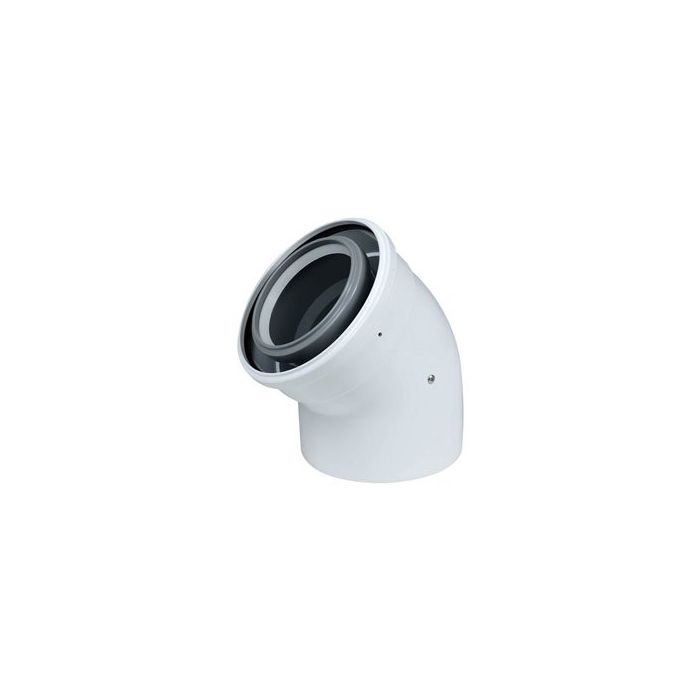

Centrotherm ICEL2445 InnoFlue Concentric Elbow

Product Description

The Centrotherm ICEL2445 is a concentric elbow designed for use with InnoFlue polypropylene vent systems. This product supports offsets and changes in vent system direction while integrating combustion air intake. The design combines a powder-white metal outer air intake with polypropylene exhaust components. It is suitable for natural gas, propane, and fuel-oil appliances with flue temperatures below two hundred forty-eight degrees Fahrenheit.

• Integrated intake and exhaust system
• Features a forty-five degree angle
• Constructed from polypropylene and aluminum

Product Highlights

The ICEL2445 effectively facilitates the installation of vent systems, ensuring proper airflow and exhaust management.

Product Information

Standard Information

• Brand: Centrotherm
• MPN: ICEL2445

Technical Specifications

• Angle: 45 degrees
• Material: Aluminum and polypropylene
• Diameter: Two or four inches ID x four point four inches OD
• Length: six point nine inches
• Width: five point four inches
• Height: four point five inches
• Net Weight: zero point eight pounds
• Temperature Resistance (max.): one hundred twenty degrees Celsius
