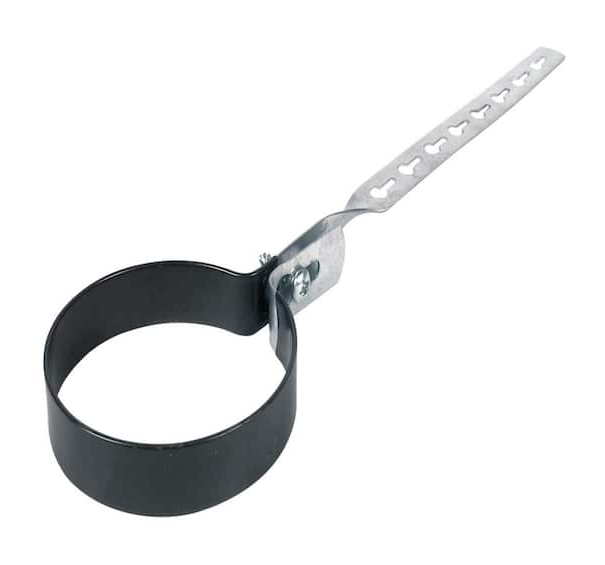

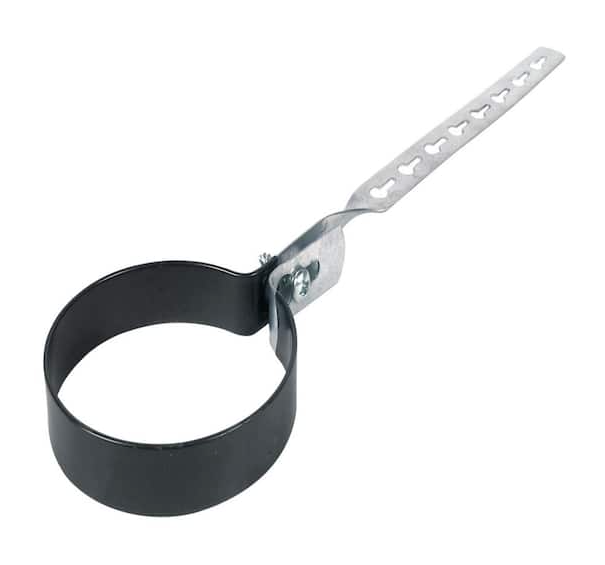

Centrotherm IASH02-50 Horizontal Hanger 2 in

Product Description

The CENTROTHERM IASH02-50 Horizontal Hanger is a metal clamp designed for supporting exhaust systems in horizontal orientations. This IASH Series hanger, with a 2-inch size, features a galvanized and rubber-coated finish to prevent scratching of venting components. It is engineered for quick and easy installation, capable of withstanding a pressure rating of 0.725 psi and a temperature rating of 120 deg C, suitable for single wall systems.

• Coated rubber exterior supports and protect pipe
• Evaluated to UL1738 and ULCS636 by ICC
• Lightweight and durable

Product Highlights

Designed for horizontal support of exhaust systems, featuring a rubber-coated metal construction for durability and pipe protection.

Product Information

Standard Information

• Brand: CENTROTHERM
• Manufacturer Part Number: IASH02-50

Technical Specifications

• Additional Information: Rubber-Coated, Single Wall System
• Finish: Galvanized/Rubber-Coated
• Material: Metal
• Pressure Rating: 0.725 psi
• Series: IASH Series
• Size: 2 in
• Temperature Rating: 120 deg C
